PMM - Power Meter Monitor

PMM0107

X86 BASED EMBEDDED INDUSTRIAL COMPUTER

    `

KEY FEATURES

  • Intel® Atom™ x5-Z8350 CPU
  • Embedded 16GB eMMC hard drive
  • Built to meet all Power substation requirements
  • 2x customized serial/IO communication ports covering all industrial standards
  • Supports 2.4/5GHz WIFI
  • -40 to 85°C (-40 to 185°F) system operating temperature
  • Wide range of power supply options
  • Wide range of mounting system
  • Compact size with fanless design
More than 10 in stock
Base Price:497.15 $

Contact Sales

DESCRIPTION

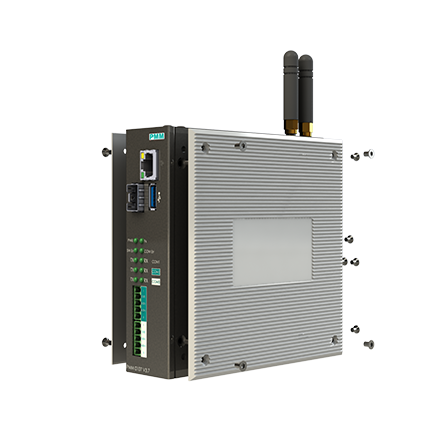

PMM0107 is a rugged powerful reliable fanless industrial embedded computer, powered by Intel® Atom™ x5-Z8350 CPU, which offers a high level of performance and low level of power consumption.

The device represents an ideal computing solution for tight spaces, since it is designed with small footprints and multiple I/Os. Covered by a durable metal chassis which was designed and tested on the field to withstand shock, vibration, extended temperature ranges and challenging elements of a harsh environment.

PMM0107 is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life. Moreover, PMM0107 offers the client a wide range of interfaces covering most of the industrial standards and increasing the connectivity.

APPLICATION

PMM0107 is made with intelligent and flexible solutions to equip the clients with all features needed to deploy their industrial applications with swiftness and reliability. It is ideal, including, but not limited to the following target application:

  • Power plant controllers
  • Power meter reader
  • IEC 101/104 to Modbus converter
  • Database synchronizing
  • Tracker controller
  • Factory automation
