PMM1010

AUTO VOLTAGE SELECTION RELAY

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Ultra-fast switching time (< 7ms)
  • Detects source voltage failures
  • Detects phase angle imbalance
  • detects reverse phase sequence
  • detects supply under-voltage
  • single or double shot re-close with selectable auto reset mode
  • LED indicators to show healthy incoming and outgoing voltage sources
  • 110V, 220V, 415V 50Hz or 60Hz versions
  • Failsafe operation (contact normally connected to primary source (source 1)
  • Compact design and mechanically stable

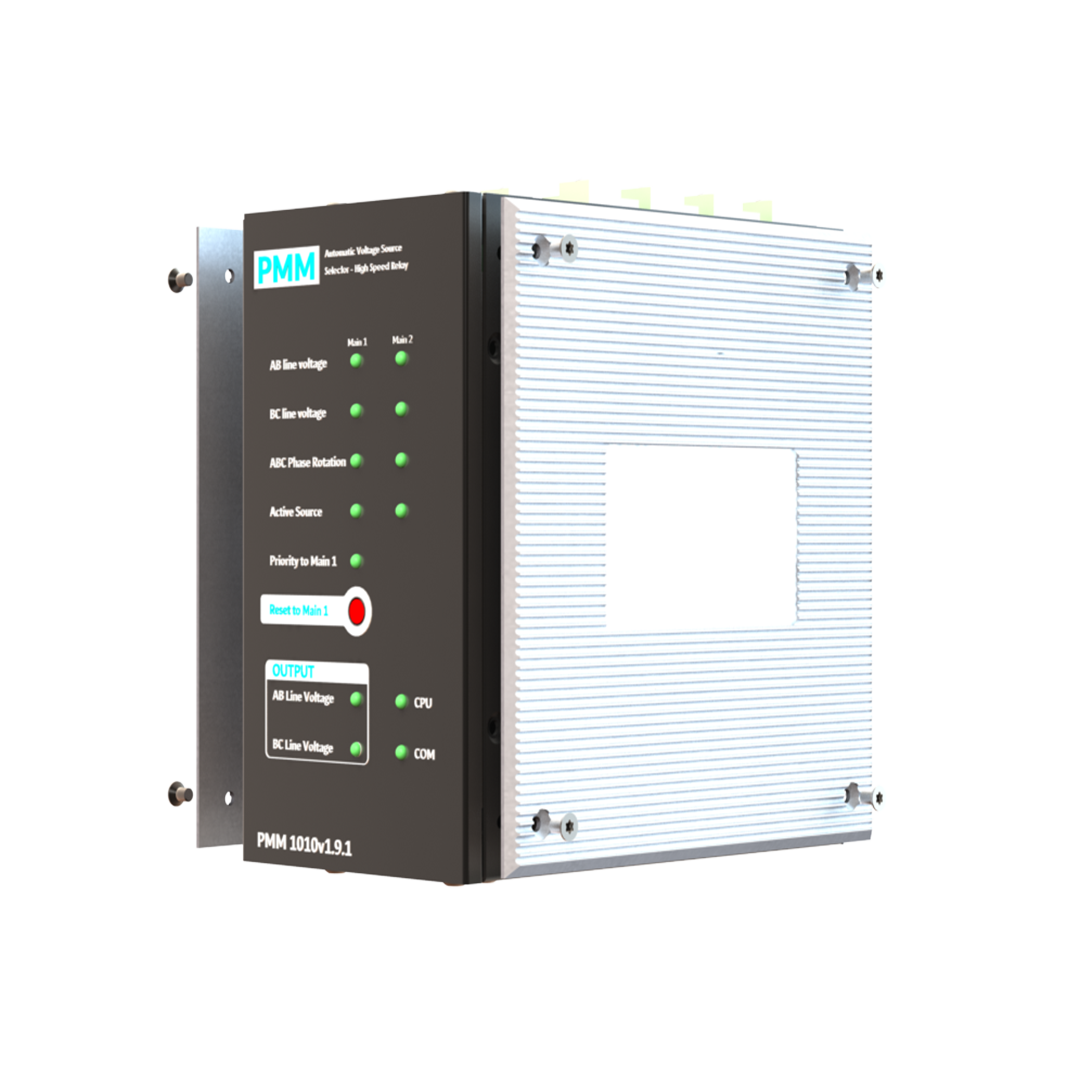

  • Din Rail, Wall and panel mount mounting options
  • Optional CPU and RS485 communication module (Modbus RTU)
in stock
Base Price:1100 $

Contact Sales

DESCRIPTION

PMM1010 in basic; is a phase failure relay that is suitable for three-phase supply, it’s an internal, high-speed voltage selection relay designed to allow automatic changeover from a primary 3-phase supply to a secondary 3-phase supply if any fault in the primary supply is detected. An alarm contact and front panel LEDs indicators are provided to ease fault diagnosis.

The device also, has an optional CPU board which provides the client with RS485 connection to remotely monitor the status of primary and secondary supply as well as alarm and fault log.

The CPU board provides an independent internal source of signals which can be integrated in the metering system, therefore, providing the client with an accurate switching time for invoicing calculation purposes.

TARGET APPLICATION

PMM1010 monitors the three-phase voltage supply and operates immediately if the supply is interrupted or becomes unbalanced due to failure of the primary or secondary voltage sources.

The recovery of the primary supply to a healthy condition will cause the relay to change back to the primary supply (if automatic mode for source 1 priority is selected).

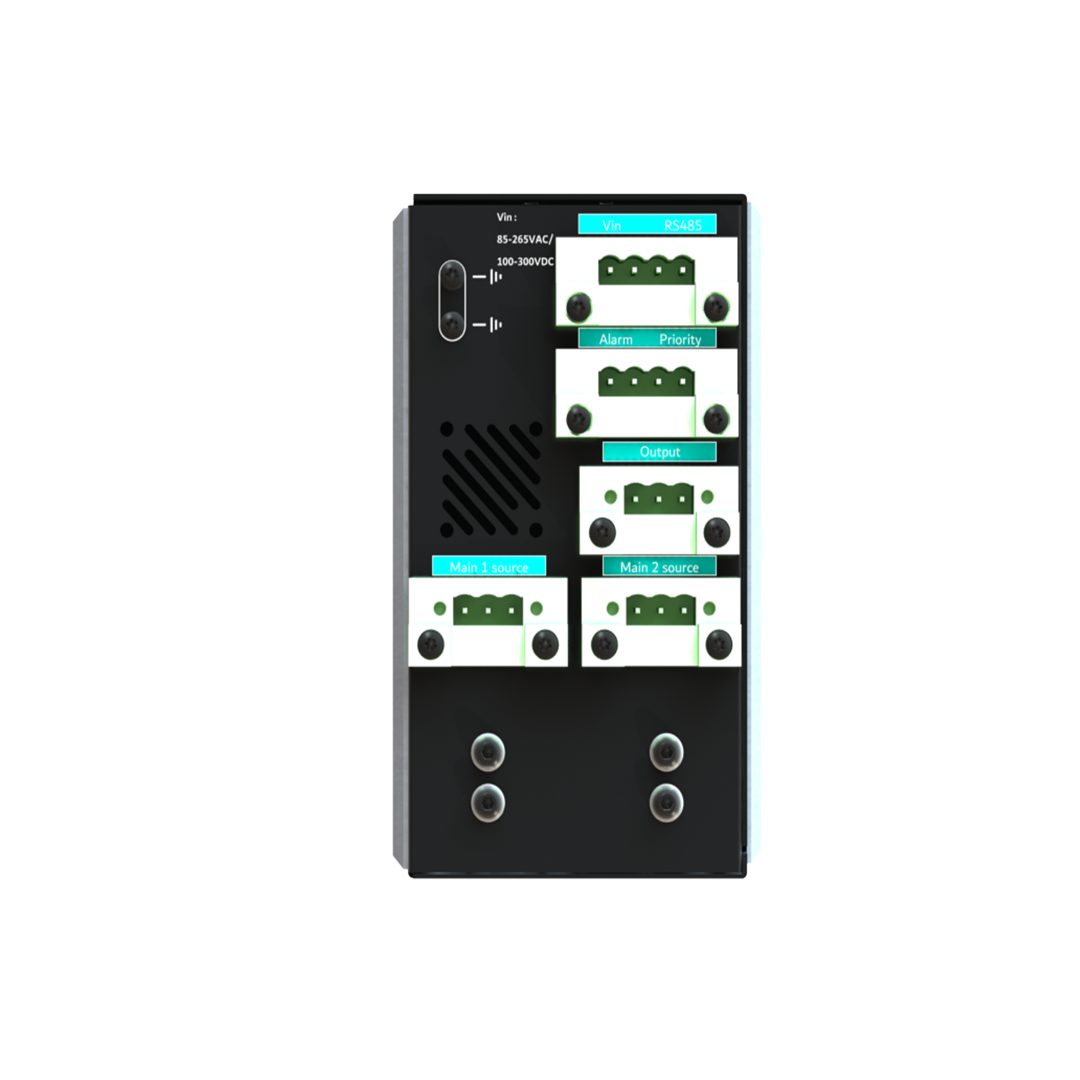

The automatic recovery mode can be set by connecting priority terminals together. In case of manual mode, the user needs to press the reset button on the front panel to reset the connection to the primary source.

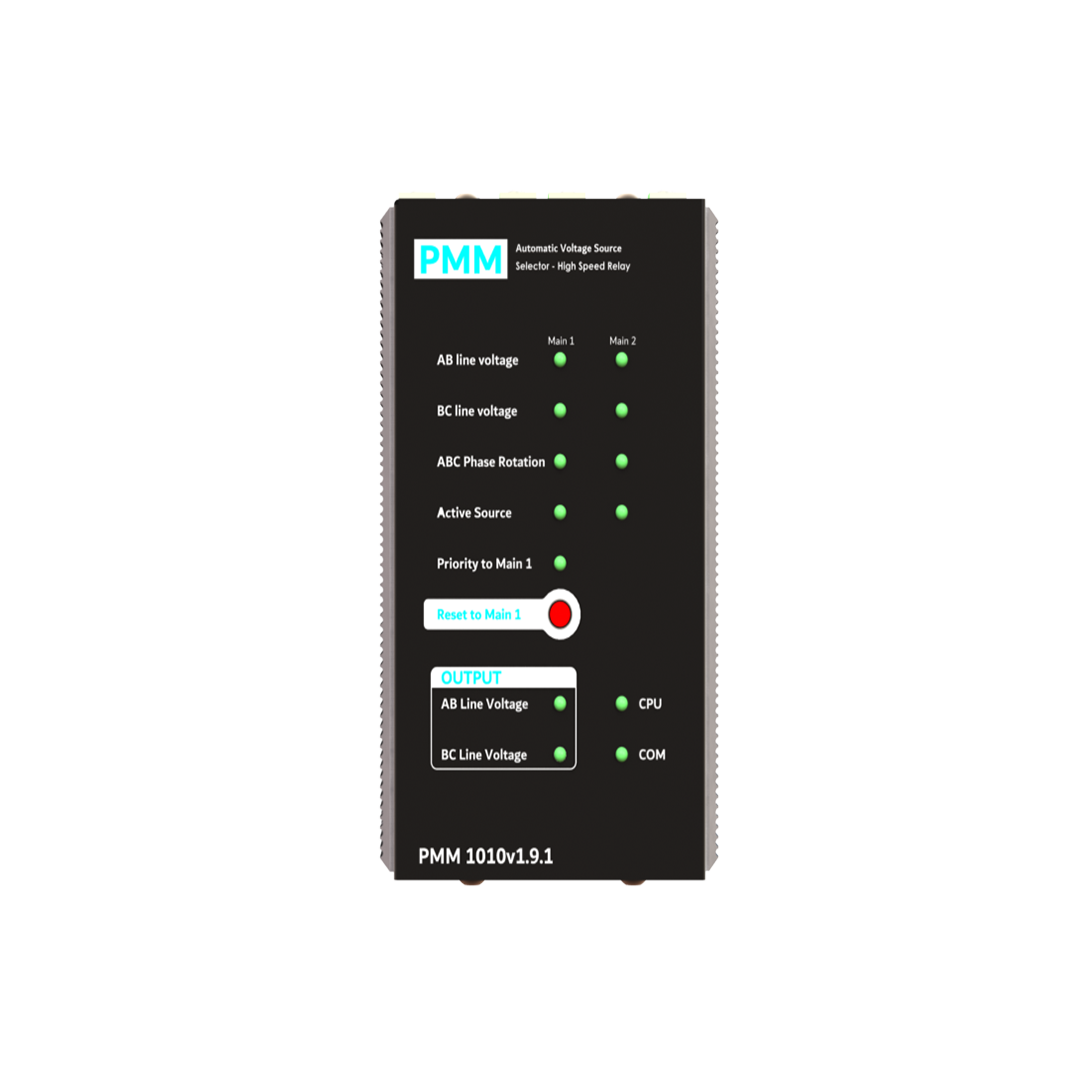

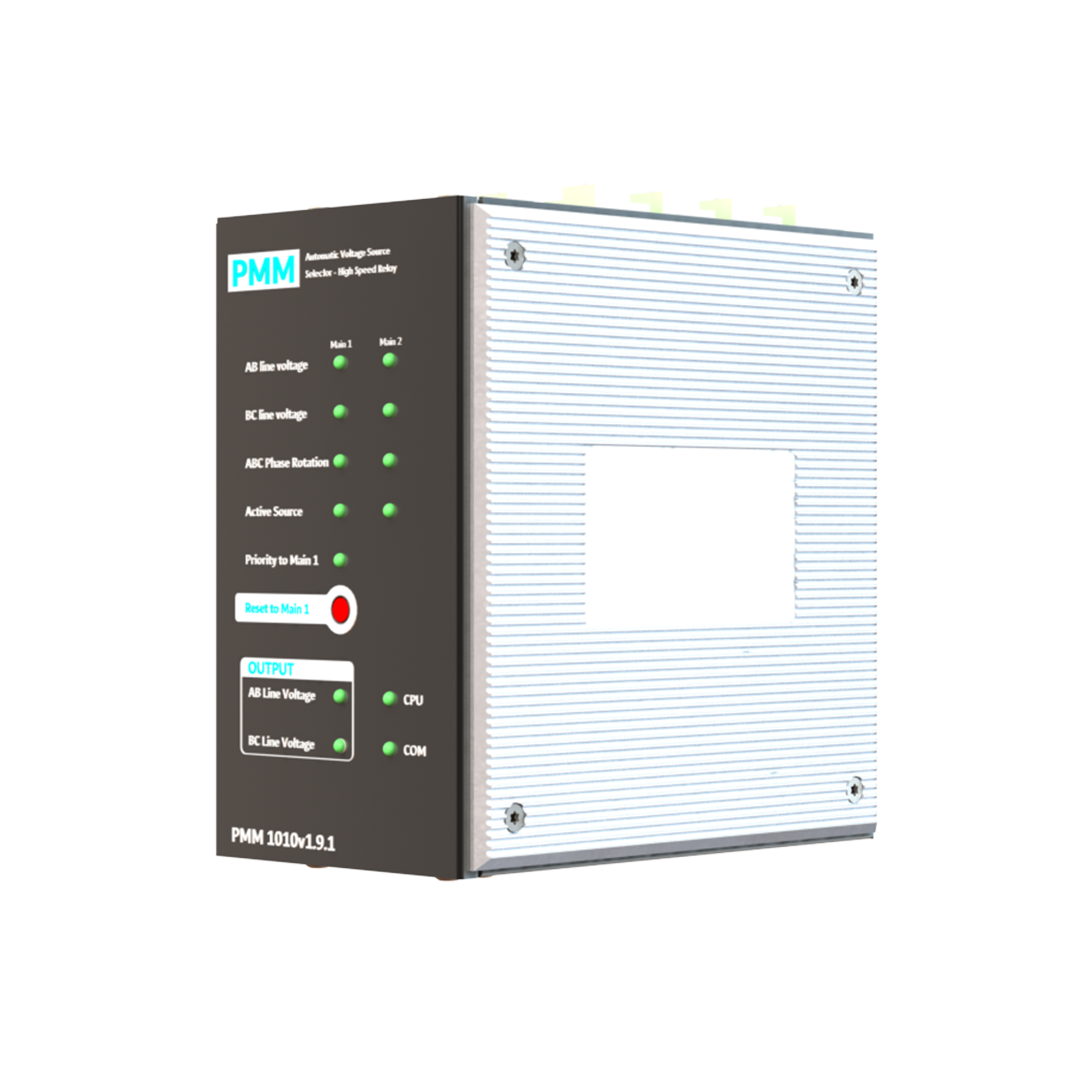

Front panel LEDs will indicate the status of sources and device operation and thus allowing fault recognition. The LEDs will be activated due to the following conditions:

  • Supply sources line status
  • Output health and active source indicators
  • Phase rotation sequence indicator
  • Automatic reset selection
  • CPU status
  • RS485 Communication status

Also, a typical application as a voltage selection relay is the automatic connection of metering equipment to an alternative supply if the primary or preferred supply fails, or any similar application.
