PMM - Power Meter Monitor

PMM0504

LINUX BASED WITH COMMUNICATION PORTS + WIFI

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • 2x RS232-RS485/422 Repeater
  • EIA/TIA RS-232C Standard and RS-485 Standard
  • 4x LED indicators to monitor network activity
  • Meets all power substation requirements
  • Isolated power supply

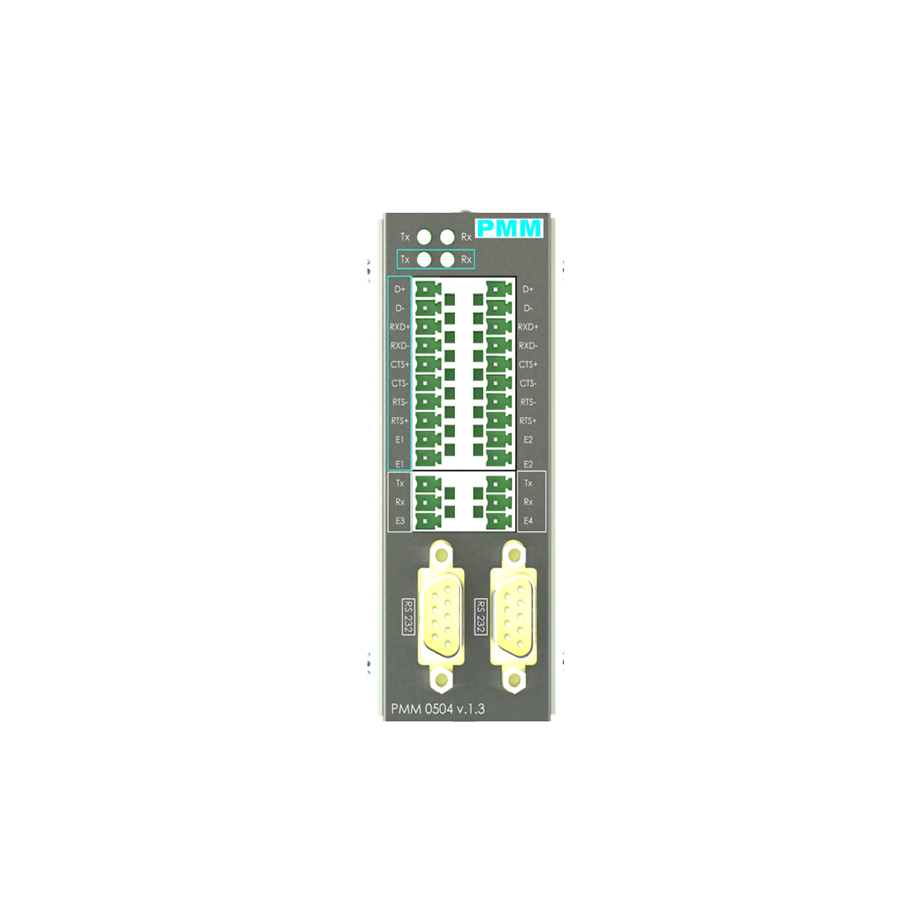

  • DB9 connector in RS232 side
  • Terminal block in RS485/RS422 side
  • 600W Power surge protection
  • ESD protection
  • Bidirectional data transfer
  • Safe and easy to use and operate
  • Operating temperature: -40 to 80°C
  • Self- adjusting Baud rate of 300 to 115.2 Kbps

Contact Sales

DESCRIPTION

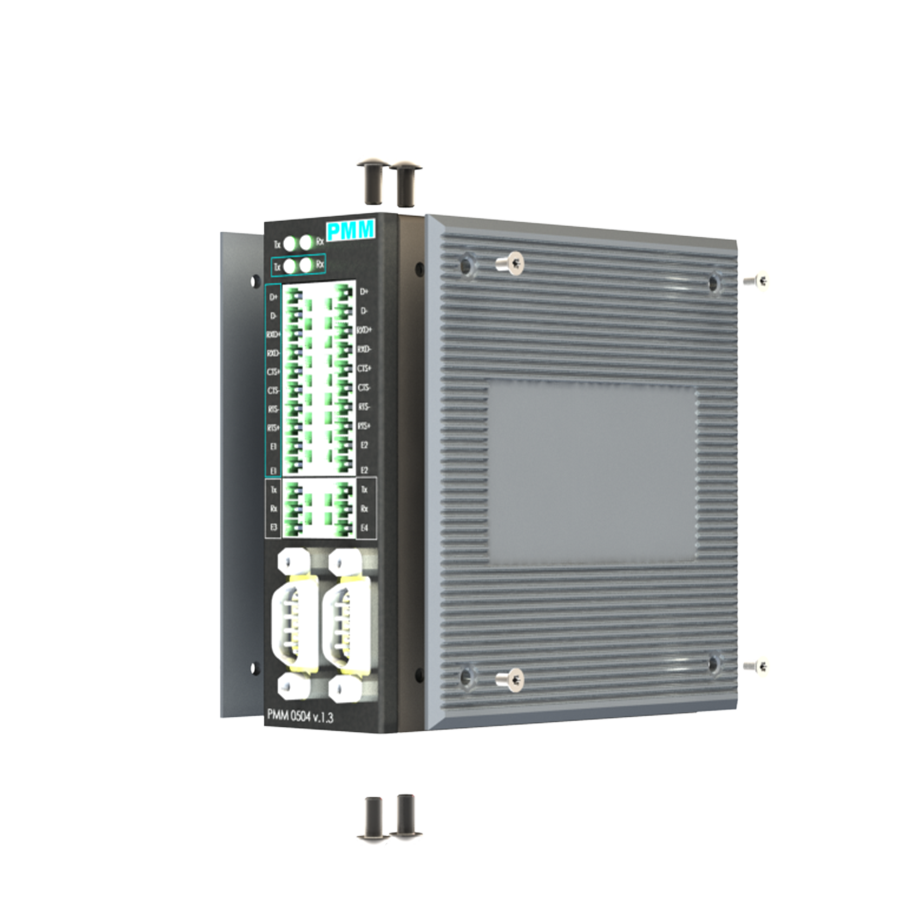

PMM0504 is an isolated RS232-485/422 converter, RS485 repeater and RS232 repeater. It has the ability to convert serial data communication types and the 120 Ohm terminal resistor helps in noise reduction as well as impedance matching. The device contains two circuits as a result it also functions as a repeater extending data transfer distances while protecting the device form ground loops, noise problems, transient surges, remote lighting and spikes. Another added feature that comes with the use of two circuits is that now you can connect a larger amount of devices as well as use two networks instead of one.

PMM0504 industrial grade media converter can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.

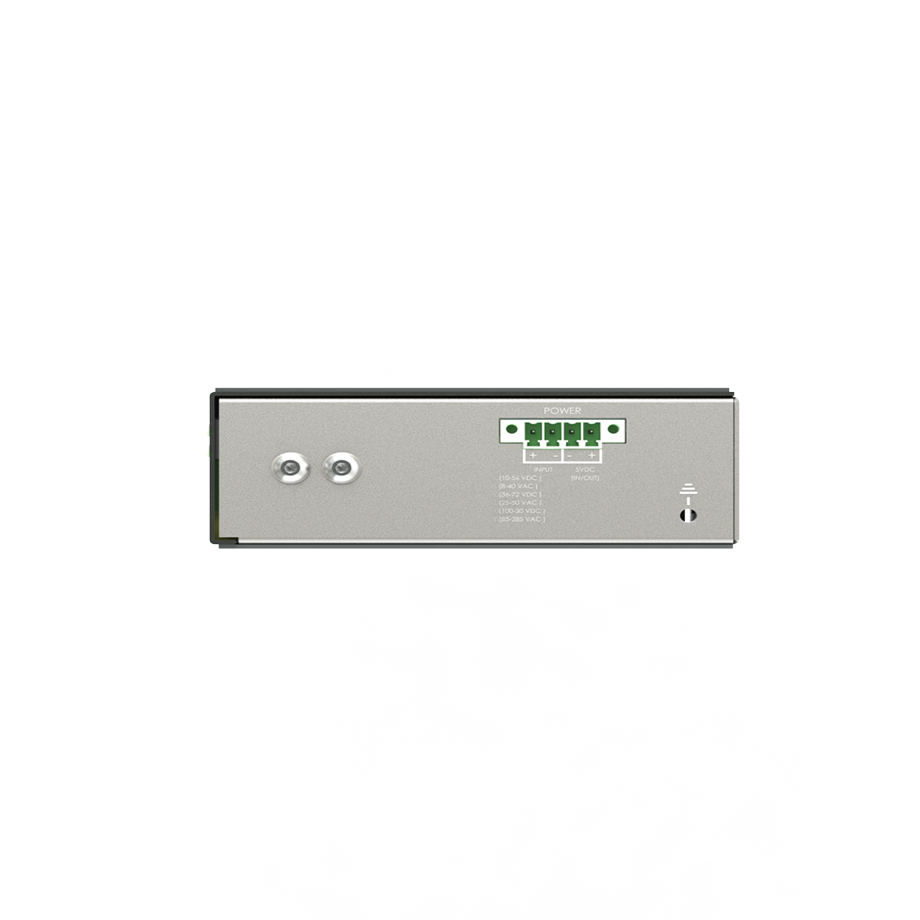

This device can be ordered with multiple power supply ratings to select from.

APPLICATION

PMM0504 can perform efficiently and effectively in the PV, substation and industrial applications as:

  • Bidirectional RS232-RS485/422 converter
  • RS232 Repeater
  • RS485 Repeater
