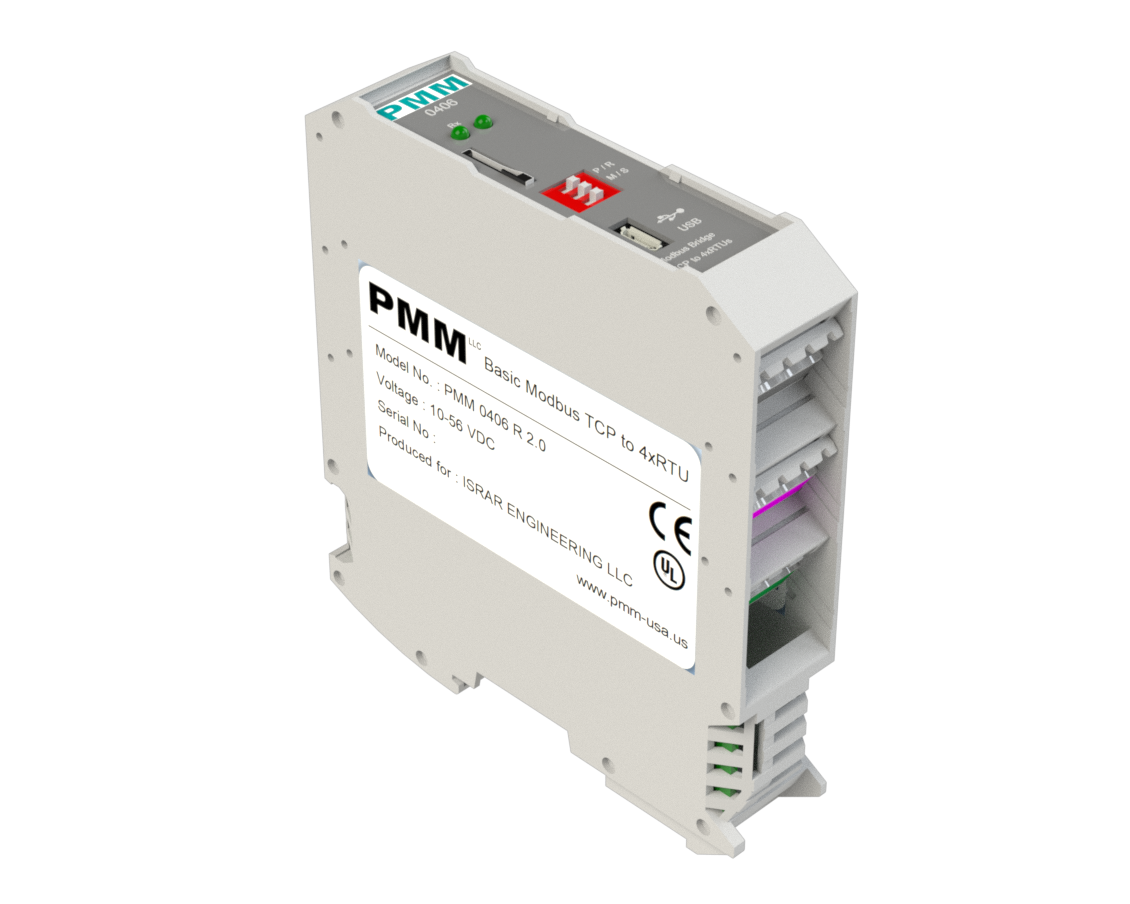

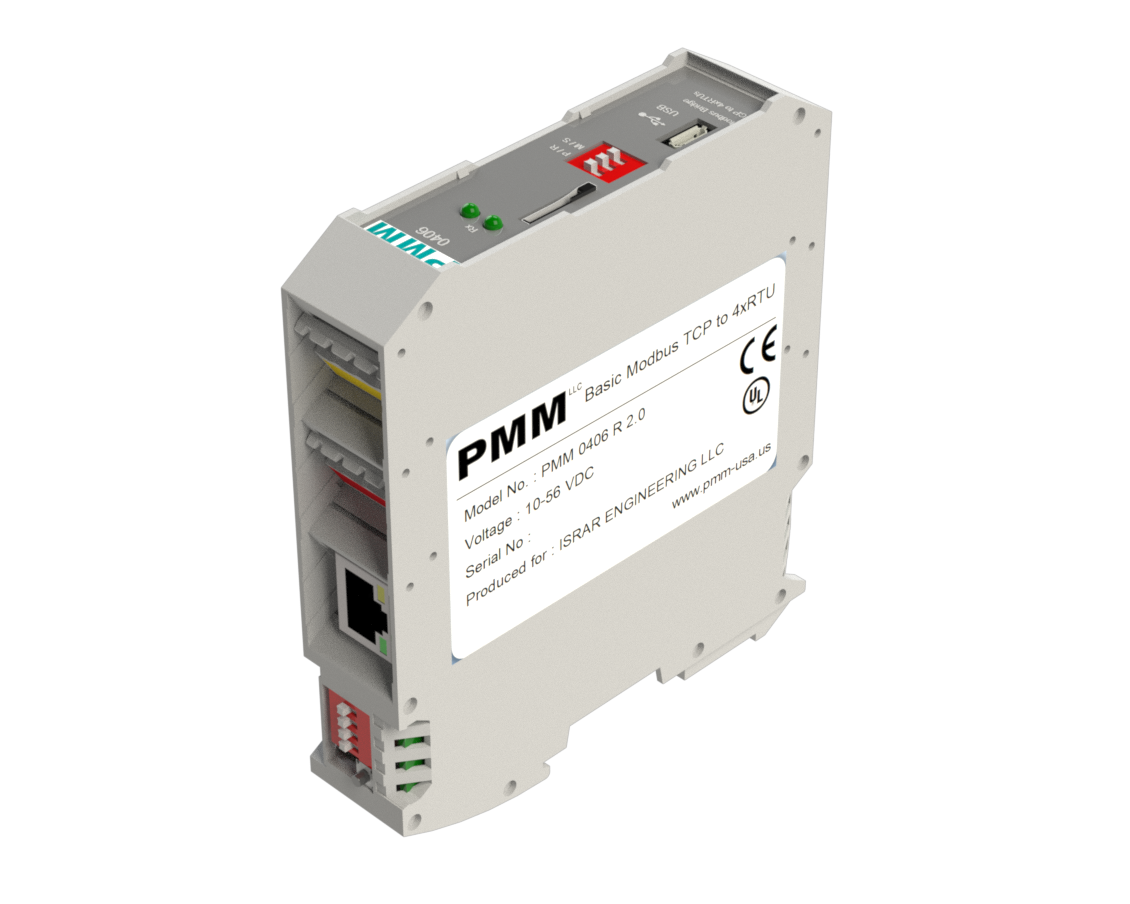

PMM - Power Meter Monitor

PMM0406

Basic Modbus TCP to 4xRTU

KEY FEATURES

  • Converts smoothly Between Modbus TCP to 4 x RTU
  • 4 simultaneous TCP masters with up to 32 simultaneous requests per master
  • Effortless configuration via web-based Server
  • 32-bit ARM core microcontroller, with an 84 MHz clock
  • Embedded traffic monitoring as well as diagnostic information for easy trouble shooting
  • 1x RS485 Fixed console serial communication port
  • 4x RS485 - RS232 Serial communication ports
  • Baud rate: 110-256000 bps
  • Supports 2-32 GB SD card for configuration backup and duplication for event logs and settings
  • Different Power supply options with over voltage and reverse polarity protection
  • 120Ω terminal resistors controlled by dip switch
  • Operating temperature: -40 to 75°C (-40 to 167°F)
  • Storage temperature: -40 to 85°C (-40 to 185°F)
  • Ambient relative humidity 5 to 95% (non-condensing)
  • EMI, EMS, EMC and shock protected
  • Serial port with power surge ±2.5kV isolation protection
  • Enclosure Ingress Protection Code: IP54
10 in stock
Base Price:173.4 $

Contact Sales

DESCRIPTION

PMM0406 is a highly configurable industrial Ethernet gateway device capable of quick protocol conversion on Modbus TCP/RTU Networks.

Modbus slave devices are effortlessly incorporated into an existing Modbus TCP network, where slave devices are easily reached by their respective masters. PMM0406 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect any type of industrial solution network such as the SCADA system.

PMM0406 gateways support a system log function that records events; users can easily review log data remotely through the web interface. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a Power SCADA system. When a device gets disconnected or does not respond, in such case the SCADA system gets the status of each end device and then issues alarms to notify operators.
