PMM - Power Meter Monitor

PMM0405

ION-API - Meter configuration and verification utility

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Unlimited applications, configuration and solutions across any power system
  • Reduce downtime, cut costs and optimize equipment usage and operations
  • Simplifies power quality programming
  • Manage energy with scalability and precision
  • Adaptable to any custom framework with custom displays

Contact Sales

DESCRIPTION

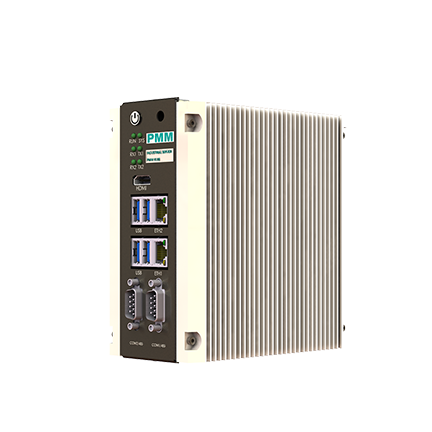

PMM ION API and industrial hardware communicates effectively with PowerLogic PM800, CM3000 and CM4000 series power meters from Schneider .integrating Schneider meter with PMM SCADA system never been easier with PMM API.

ION modules are the functional building blocks of ION architecture. The functions or features available in the ION device are a result of the logical groups and links between different types of ION modules. Each module is specialized to perform a specific task, contain data and instructions on how to manage that data. By combining (or linking) several modules together with PMM ION API, you can create custom functions for your power monitoring system.

ION modules that are linked together to perform a specialized task are collectively referred to as a "framework". A framework defines a specific ION device function, such as the Demand and Energy framework, or the Power Quality framework. These different functional frameworks are then grouped together for a particular ION device, and are collectively referred to as the "device template".

With PMM solutions, each ION device has its own device template that defines its metering/monitoring capabilities. You can change the default factory configuration on the ION device by changing the settings (i.e., setup registers) of certain ION modules inside the device. You can add, change, or delete functionality by changing the way the ION modules are linked in the device. There are several ways to do this:

  • From the meter front panel – Use the meter’s front panel or remote display to change basic power meter settings such as Volts Mode, PTand CT primary and secondary ratings, as well as communications settings such as unit ID, baud rate, protocol or webpage configuration.
  • Using ION Setup – ION Setup configuration software is available. Advanced Mode in ION Setup lets you access and modify the settings for any ION module inside an ION device. ION Setup is particularly useful for configuring meters that do not come with a front panel or remote display.
  • Using PMM API – PMM API will graphically shows how the different ION modules are linked together in a framework. In addition to giving you the ability to change the settings of any ION module, IT also lets you change existing links between modules, add new links, add new modules or delete them. Designer helps you visualize the logic when you are programming custom functionality in the ION device.
