PMM - Power Meter Monitor

PMM0204 - Data Bank SQL

INDUSTRIAL REPOSITORY OF INFORMATION ON ONE OR MORE DATA FIELD

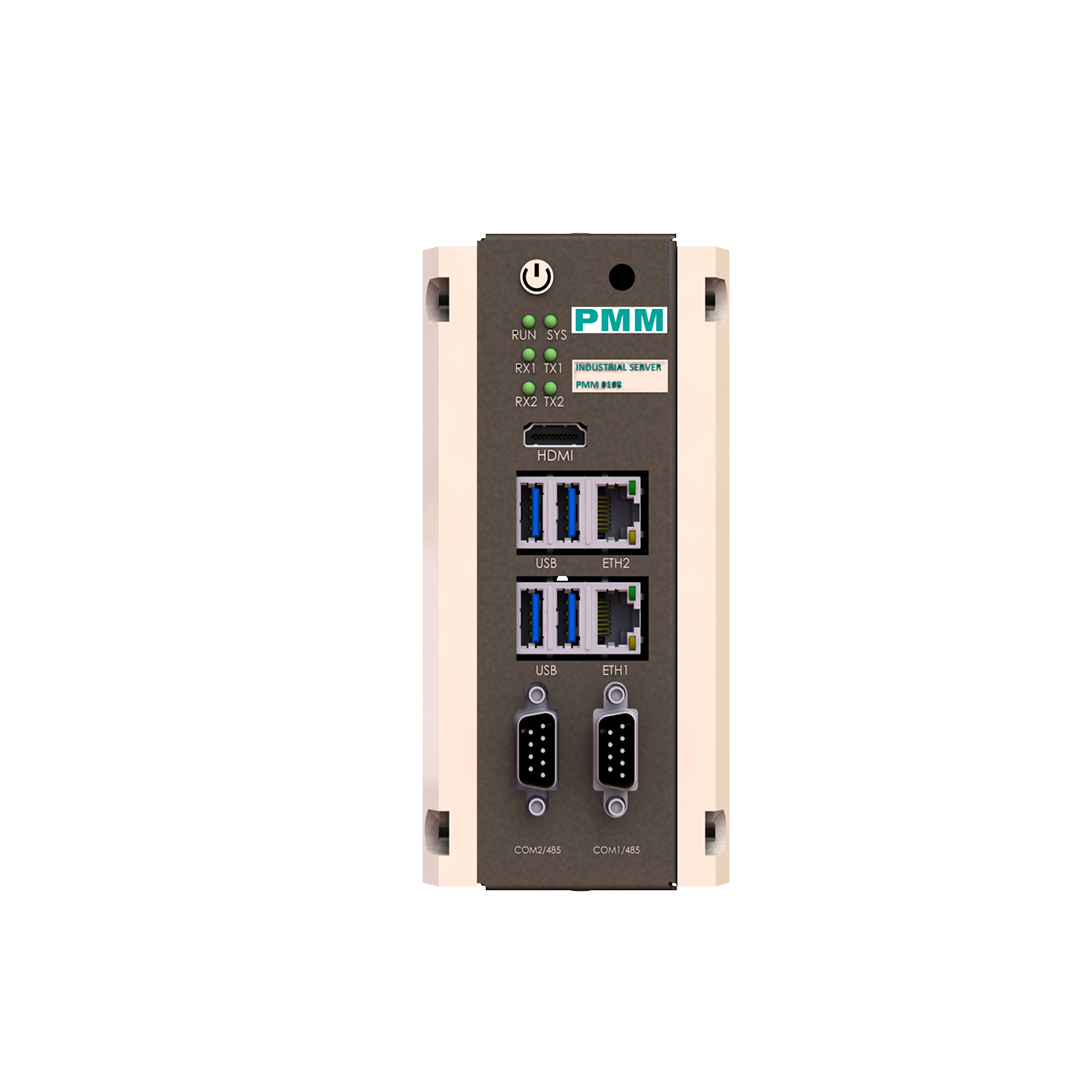

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Intel® Apollo Lake Series J3355
  • Dual core 2.3 GHz frequency
  • 512GB mSATA Mini PCIE SSD
  • OS MS Windows 10, 64-bit
  • SQL Server based
  • User friendly configuration and API interface
  • Built to meet all Power substation requirements
  • 2x RS485 Ports serial/IO communication ports
  • Supports 2.4/5GHz WIFI
  • 6x LEDs for communications and power
  • Wide range of power supply options
  • -20 to 60°C system operating temperature
  • -40 to 85°C storage temperature
  • Wide range of mounting systems to ensure excellent heat dissipation
  • Compact size with fanless design

Contact Sales

DESCRIPTION

PMM databank is an industrial repository of information on one or more data field that is organized in a way that facilitates local or remote information retrieval and is able to process many continual queries over a long period of time. PMM databank may be either centralized or decentralized, though most usage of this term refers to centralized storage and retrieval of information. The data in a data bank can be anything from scientific information like global temperature readings, utility sale power plant historic information like inverters, meters , transformers, weather stations, switch gears, notifications trackers or even financial-system records like credit card transactions, or the inventory available from various suppliers.

PMM0204 is based on PMM0108 hardware. The hardware is a rugged, powerful, reliable and fanless industrial embedded computer, powered by Intel® Apollo Lake Series J3355.

Its enclosed within a durable metal chassis that has been thoroughly tested on field to withstand shock, vibration, extended temperature ranges as well as the challenging elements of the harsh environment.

With this industrial computer all field standards of power, power substation and PV requirements are met. Besides being reliable it is easily configured giving it a long-lasting life.

APPLICATION

PMM0204 is made with intelligent and flexible data logging and storage and retrieval solutions to equip the clients with all features needed to deploy their industrial applications with swiftness and reliability. It is ideal, including, but not limited to the following target application:

  • Utility power plants
  • BMS (Building Management Systems)
  • Industrial firms and manufacturing facilities
