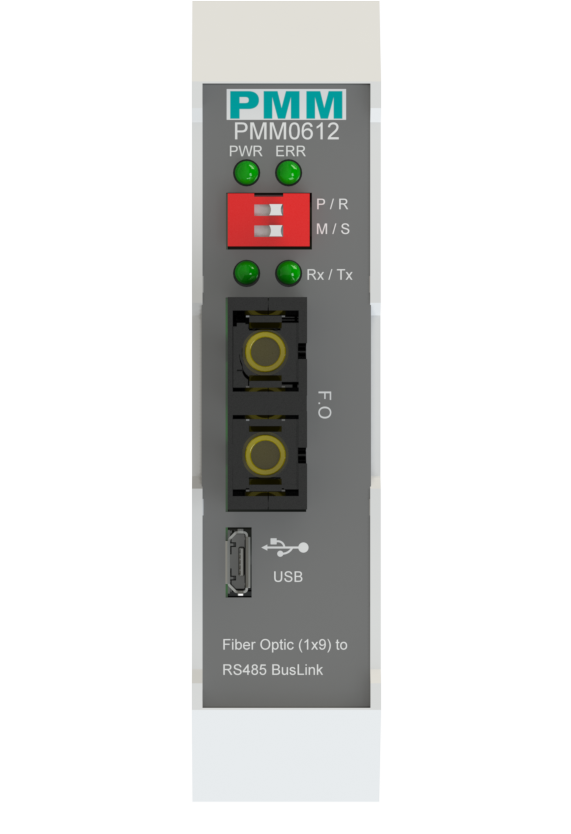

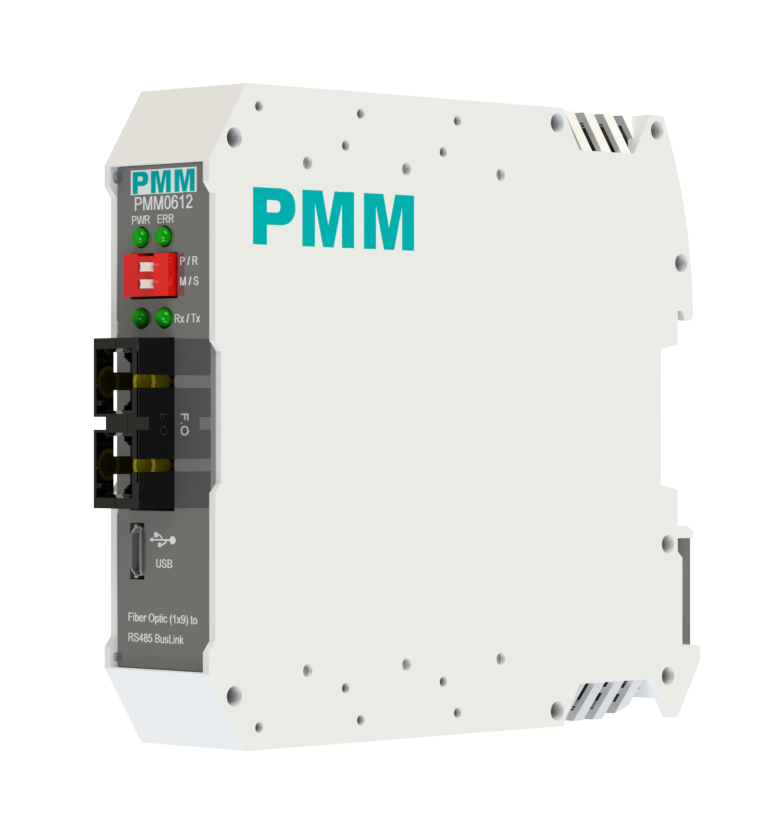

PMM - Power Meter Monitor

PMM0612

F.O (1x9) to RSxxx BusLink / Multi Converter

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • 3x Ethernet 10/100 ports, 1x RS485 port and 1x Fiber optic port
  • RS485 Transmission speed up to 256 kbps
  • ESD Protection for the RS485 Data Line
  • Supports SD card up to 32GB
  • Media and protocol converter
  • Optional Isolated power supply
  • Simple to set up and cost effective
  • Open platform which can be programmed with common tools as needed
  • Meets all power substation requirements
  • Highly compacted size
  • Standard 35mm Din Rail and can work stand alone setup or with our rack type PLC

Contact Sales

DESCRIPTION

PMM0612 is an open platform ethernet switch with 3 Ethernet ports, one fiber optic port , one RS485 port and SD card up to 32GB ,a basic function as a media and protocol converter.

It is equipped with all protections needed to be the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning, or chemical corrosion.

Furthermore, PMM0612 is an Open platform which can be programmed with common tools like Arduino IDE ,PlatformIO and OpenPLC..etc which make it very easy to fit any needed applications.

PMM0612 is an industrial grade multi converter that can function under harsh environmental conditions of any site. It is especially designed to meet all power substations , PV plants requirements and more where it covers all field standards of power, reliability, easy configuration, and long-lasting life.
