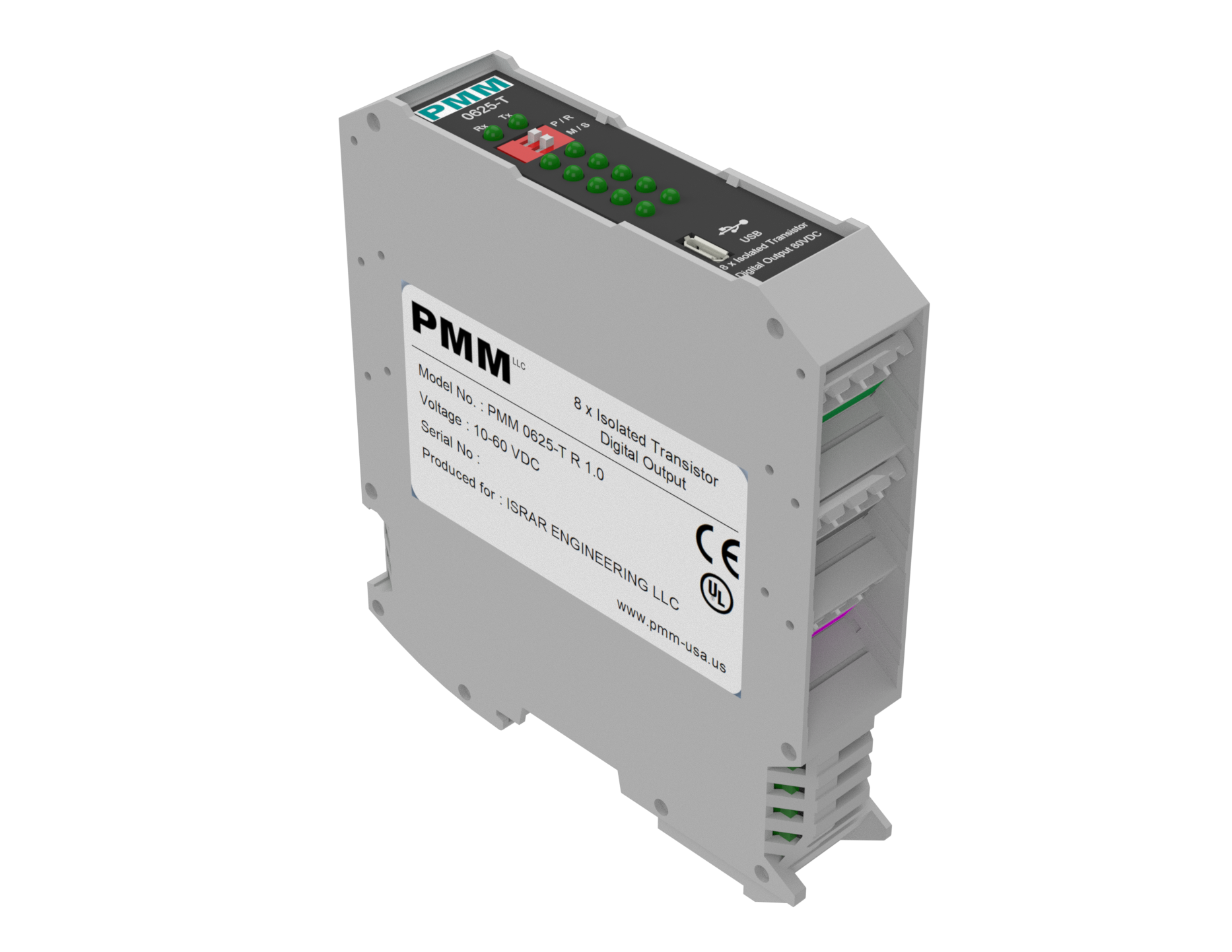

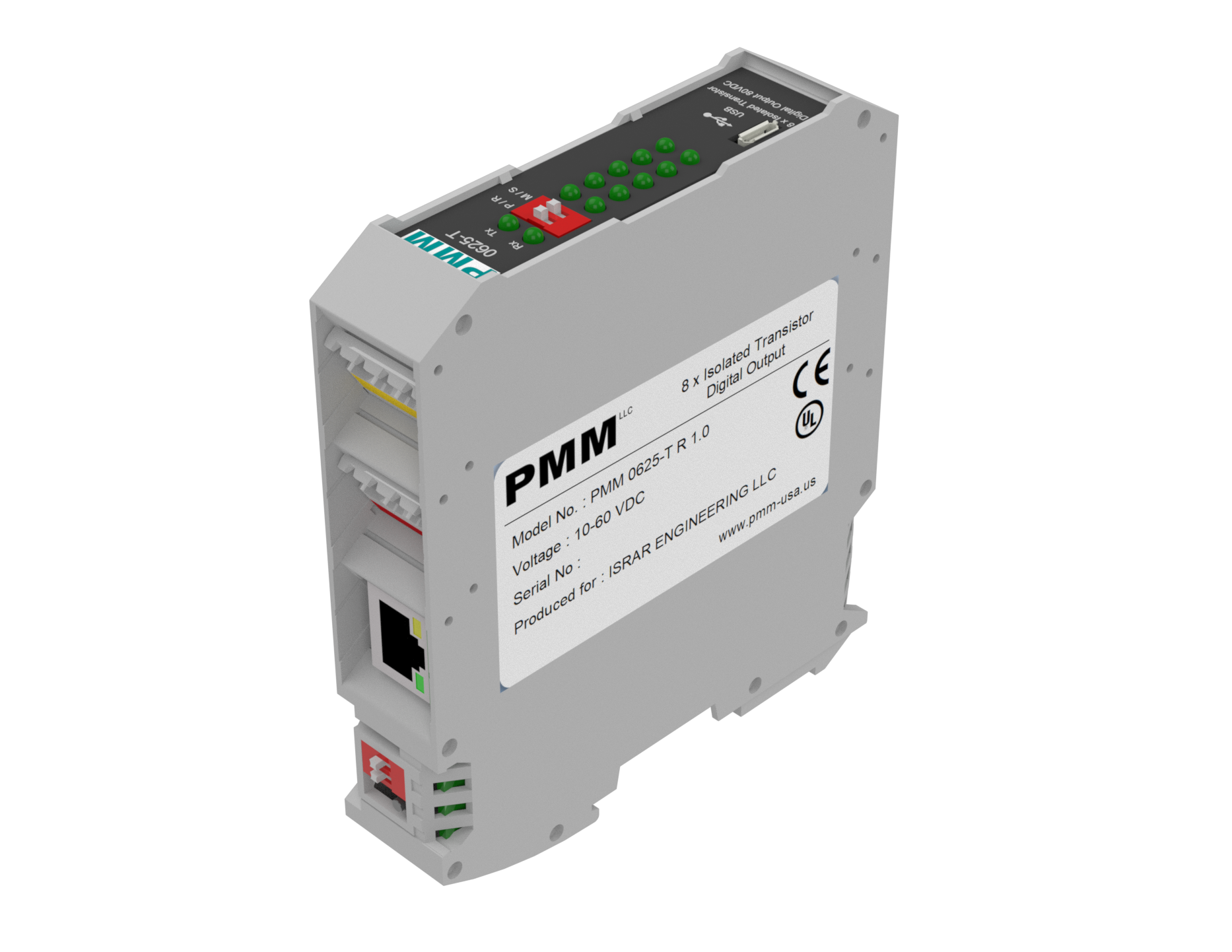

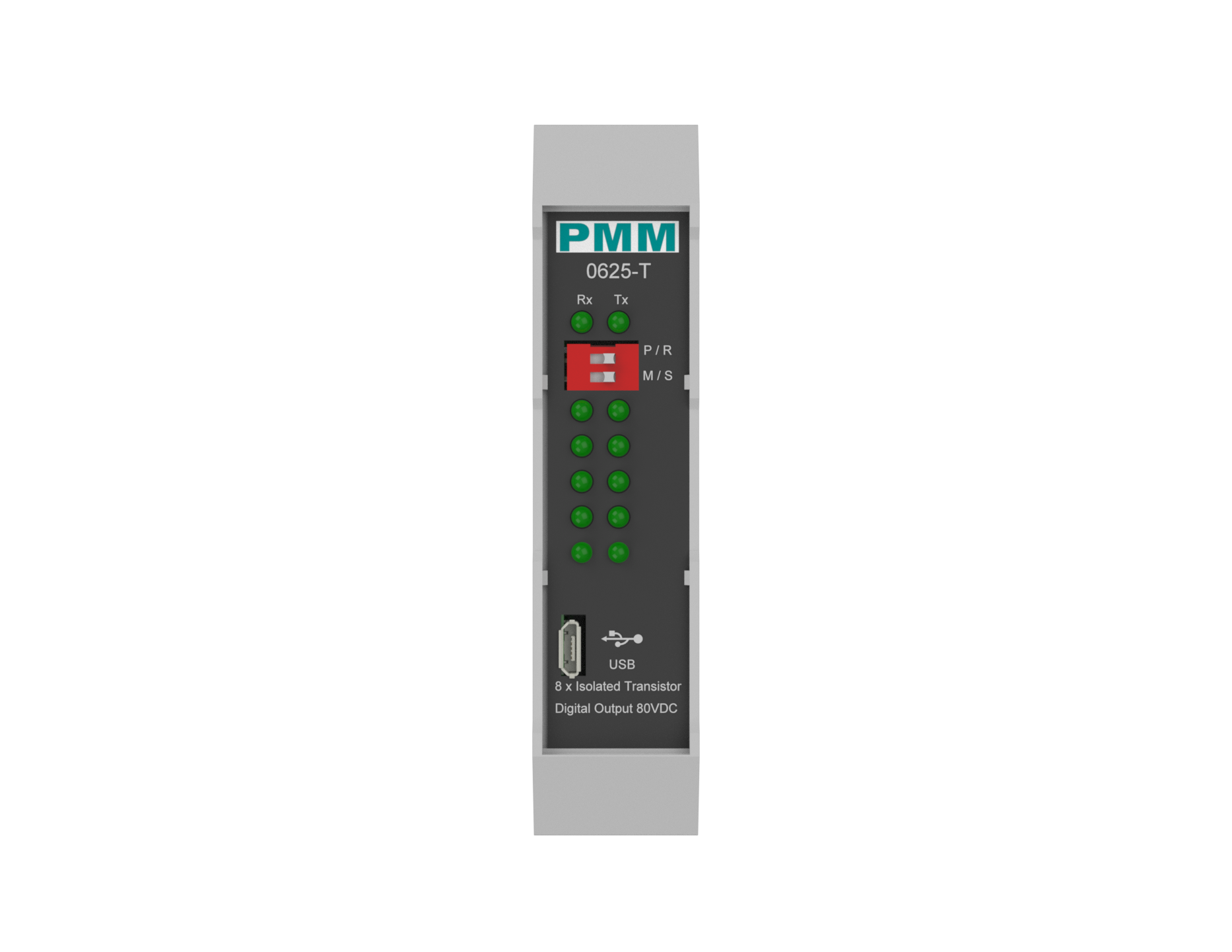

PMM - Power Meter Monitor

PMM0625-T

(8 - 56) x Isolated Transistor Digital Output 80VDC

KEY FEATURES

  • 32-bit ARM core microcontroller with 48 MHz clock
  • Hot swap redundancy exchange and fail safe ready
  • Stand alone programming or Modular operation modes
  • (8 - 56) x Isolated Digital output 80VDC
  • 5000V system/field isolation
  • 1x Ethernet 10/100 port and Rs485 port
  • Serial port with power surge ±2.5kV isolation protection
  • Wide range of power supply options (9-56 VDC)
  • Simple to set up and cost effective
  • High speed data reading with high reliability and accuracy
  • Overvoltage and reverse polarity protected
  • EMI, EMS, EMC and shock protected
  • Standard 35mm din rail mounting bracket
  • -40 to 80 °C (-40 to 185°F) Operating temperature
  • 5% to 90% Non-condensing Relative Humidity
More than 10 in stock
Base Price:287.541 $

Contact Sales

DESCRIPTION

PMM0625-T is an innovative, and simple to set up (8 - 56) x Isolated Transistor Digital Output up to 80VDC module. Each output can deliver up to 80 V/2A and can controlled individually. PMM0625-T is also used to swiftly convert between protocols within a network, it supports up to 8 slave devices per communication port on the same network.

PMM0625-T industrial grade IO module can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and renewable energy plants requirements. Furthermore, it covers wide range of field standards of power supply, reliability, easy configuration and long-lasting life.

APPLICATIONS

PMM0625-T can perform efficiently and effectively in the substation and industrial applications .

  • IO PLC Module
  • High speed Data acuistion
  • Data logger terminal
  • Digital Stand-alone controller
  • ... and many more.
