PMM - Power Meter Monitor

PMM0730

AI (4-20 mA) - (3.3/5)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Analog Signal input range (4-20 mA)
  • Analog signal output range (0-3.30/0-5 V)
  • Both power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Current consumption 10mA
  • Error percentage does not exceed 0.1% of full scale.
  • High reliability
  • No software configuration is needed
  • Highly compacted size
  • DIN rail mounting
  • Operating temperature: -20°C to +83°C
in stock
Base Price:24 $

Contact Sales

DESCRIPTION

PMM0730 is an analog input module that has isolated input channel. It is useful and could be used for many industrial applications as the module receives analog signals from sensors and field devices ranges from 4 to 20 mA. Then, the module converts the signal to 0-3.3 V scale or 0-5 V scale to make the signals compatible with the controller.

Moreover, PMM0730 performs signal conversion at extremely high accuracy with minimum possible errors which makes it very reliable as well as it is very easy to use as there is no need for software configuration.

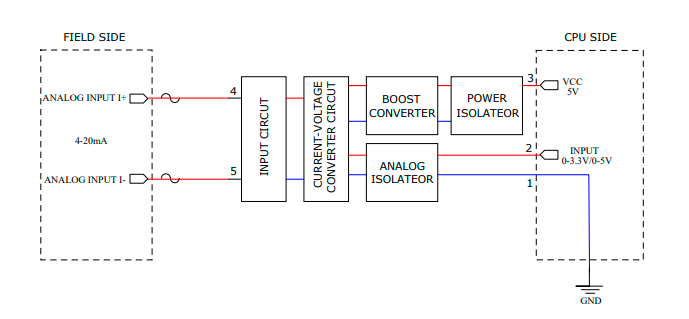

BLOCK DIAGRAM
