PMM - Power Meter Monitor

PMM0731

AI (3.3/5)-(3.3/5)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Signal level converter between 3.3V and 5V
  • Analog signal input range (0-3.3/0-5V)
  • Both power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Current consumption 10mA
  • High reliability and accuracy
  • No software configuration is needed
  • Highly compacted size
  • DIN rail mounting
  • Operating temperature: -20°C to +83°C
in stock
Base Price:16 $

Contact Sales

DESCRIPTION

PMM0731 is an analog input module that has isolated input channel. The module either steps up signals from 3.3V to 5V or steps down signals from 5V to 3.3V.

Moreover, PMM0731 performs signal level conversion at extremely high accuracy with minimum possible errors which makes it very reliable. PMM0731 is very easy to use as there is no need for software configuration.

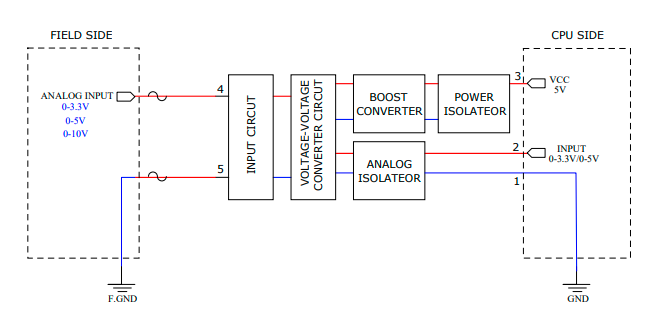

BLOCK DIAGRAM
