PMM - Power Meter Monitor

PMM0734

AI (3.3/5) - (PT100/200)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • PT100 input (-50-150 ℃)
  • Both power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Current consumption 10mA
  • Response time ≤ 100mS
  • Containing linear and long-term compensation
  • High reliability and accuracy
  • Highly compacted size
  • DIN rail mounting
  • IP54 protection degree
  • Operating temperature: -20°C to +83°C
in stock
Base Price:19 $

Contact Sales

DESCRIPTION

PMM0734 mainly receives temperature readings from PT100, ranges from -50 to 150 ℃ and convert them to 0-5V or 0-3.3V signals in order to make them compatible with the controller.

Signal conversion is done within extremely high accuracy as the error percentage does not exceed 0.2%. PMM0734 is able to withstand 2500VDC isolation voltage as the input, output and power supply are completely isolated.

PMM0734 is compacted in size, has high precision performance, and cost effective. Thus, it can be used in any industrial application such as petroleum, chemical, power, instrumentation, and control industries.

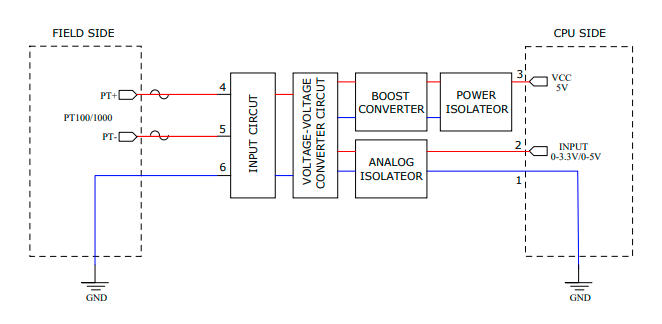

BLOCK DIAGRAM
