PMM - Power Meter Monitor

PMM0737

AO (3.3/5)VDC to (0-10v)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Analog signal output range (0-10 V)
  • Both power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Current consumption 10mA
  • Very easy to use as no software configuration is needed
  • Error percentage does not exceed 0.1% of full scale.
  • High reliability
  • Highly compacted size
  • DIN rail mounting
  • IP54 protection degree
  • Operating temperature: -20°C to +83°C
in stock
Base Price:17 $

Contact Sales

DESCRIPTION

PMM0737 is an analog output module that has an isolated output channel. It is useful and could be used for many industrial applications as the module receives analog signal from the controller ranges from 0-3.3 V or 0-5 V. Then the module converts the signal to scale 0 to 10 V to make it compatible with the connected actuators.

Moreover, PMM0737 performs signal conversion at extremely high accuracy with minimum possible errors which makes it very reliable as well as it is very easy to use as there is no need for software configuration.

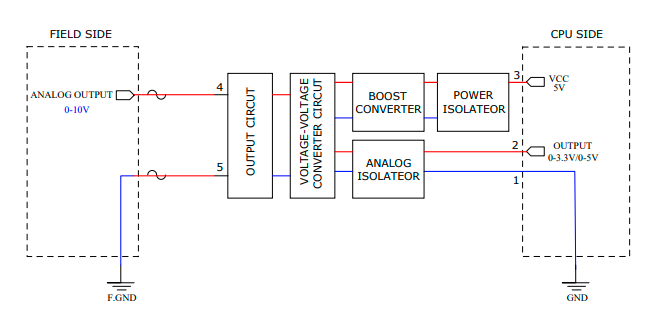

BLOCK DIAGRAM
