PMM - Power Meter Monitor

PMM0739

AO (3.3/5) VDC to (0/4-20ma)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Analog Signal output range (4-20 mA)
  • Both power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Current consumption 10mA
  • Error percentage does not exceed 0.1% of full scale.
  • High reliability
  • No software configuration is needed
  • Highly compacted size
  • DIN rail mounting
  • Operating temperature: -20°C to +83°C
in stock
Base Price:19 $

Contact Sales

DESCRIPTION

PMM0739 is an analog output module that has an isolated output channel. It is useful and could be used for many industrial applications as the module receives analog signals from the controller ranges from 0-3.3 V or 0-5 V. Then, the module converts the signal to 4 to 20 mA scale to make the signals compatible with the connected actuators.

Moreover, PMM0739 performs signal conversion at extremely high accuracy with minimum possible errors which makes it very reliable as well as it is very easy to use as there is no need for software configuration.

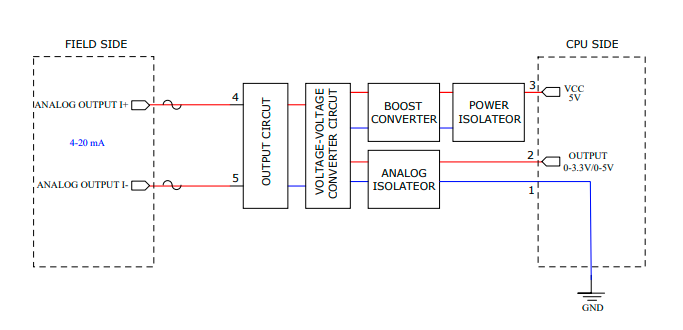

BLOCK DIAGRAM
