PMM - Power Meter Monitor


UART/TTL to CANBUS Converter Module

PMM-da-720-series-image-1-(1).jpg | PMM


  • Bidirectional conversion between UART and CAN is available
  • Three types of conversion mode :
    • - Transparent conversion
    • - Transparent tape identification
    • - Protocol mode conversion
  • Two CAN frame data types transmission methods:
    • - Fixed configuration
    • - Serial frame data designation
  • Power isolation
  • Data isolation (2500Vrms 1Mbps)
  • Parameter configuration via UART interface is available
  • UART baud rate : 300~921600UART baud rate : 300~921600
  • Parameter setting mode entered via software and hardware
  • Factory parameters is restored via software or hardware
  • Multiple indications include power, status and mode

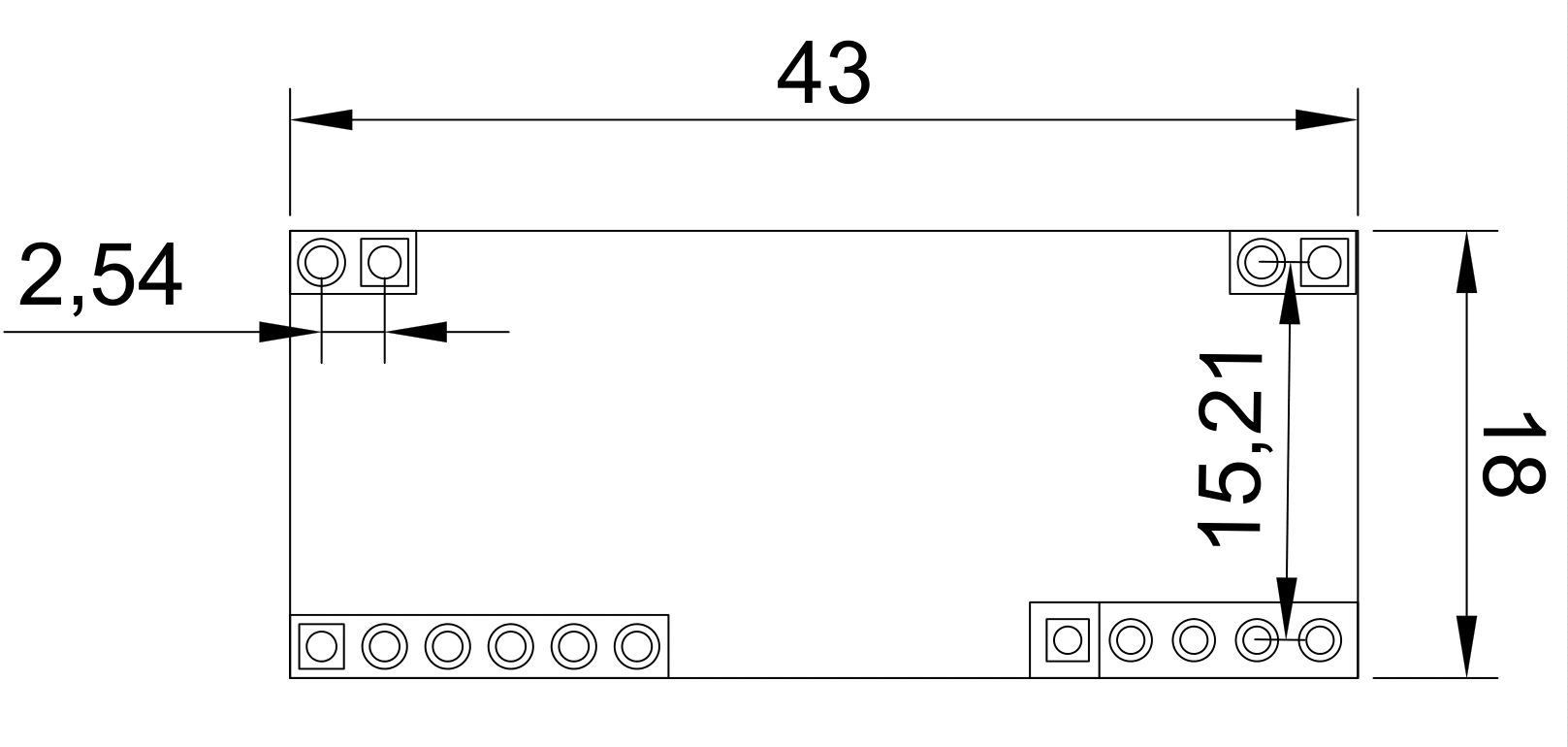

  • Module size: 43mm * 18mm * 3mm
  • Vertical and horizontal mounting options, compatible with standard DIP/SIP pinot
  • RoHS Compliant

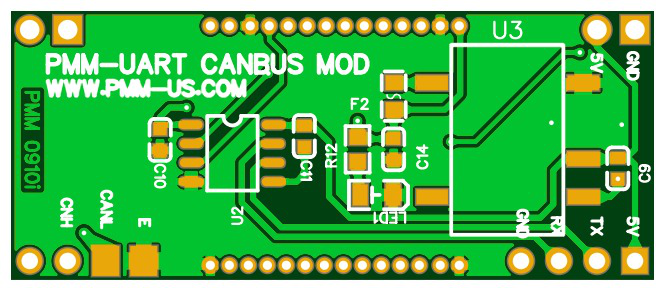

  • Proven PCB Layout
  • Fully Assembled and Tested
Contact Sales

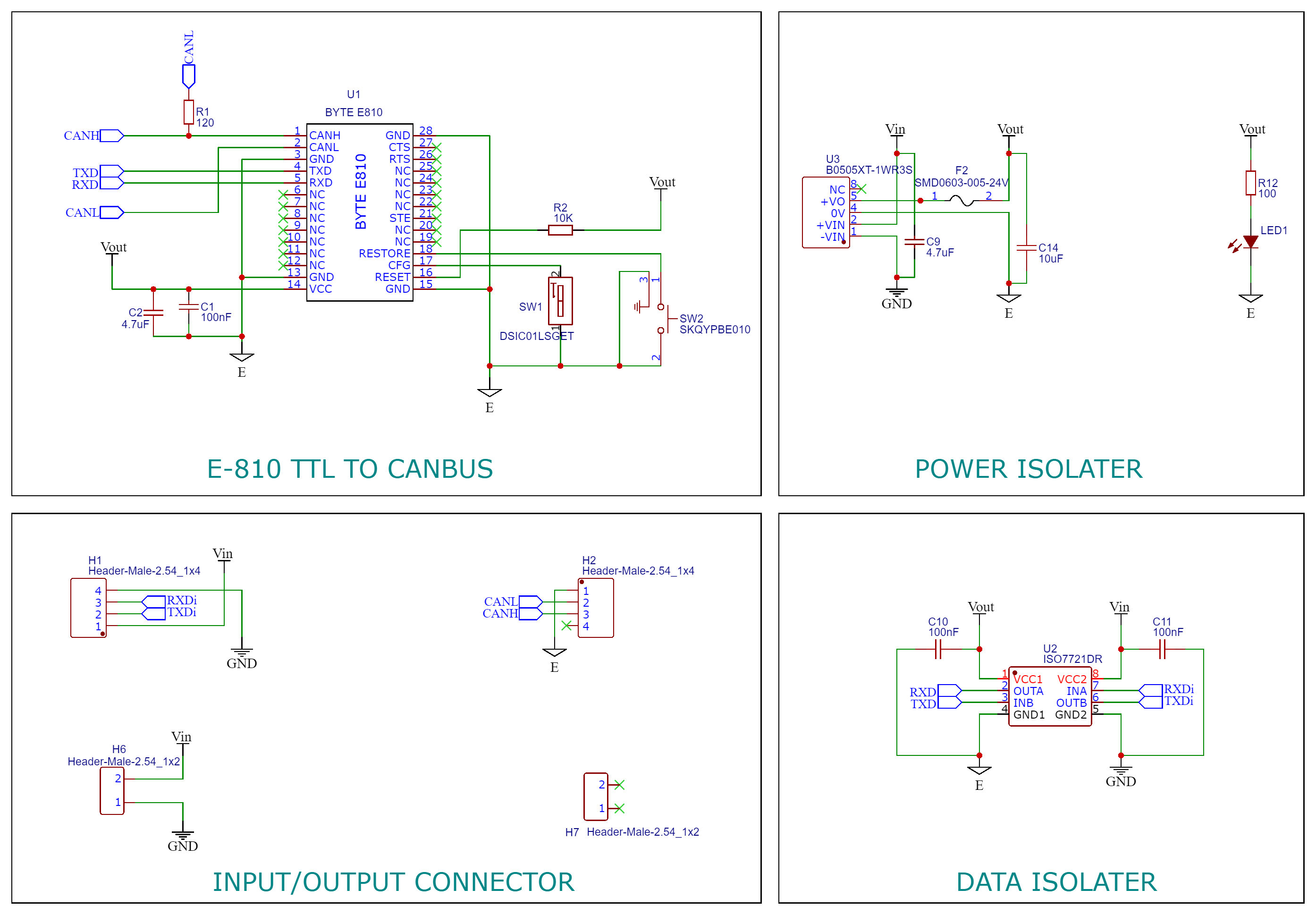

PMM0910 is a CANBUS to UART/TTL converter. It integrates one channel CAN-BUS interface and one channel UART TTL interface, which can recognize mutual transparent transmission or Modbus protocol conversion between UART TTL signal and CAN-BUS.

PMM0910 is compact in size and can be powered through any 3.3V or 5V power supply for easy integration into a variety of boards.
