PMM - Power Meter Monitor

PMM0911

SPI to CAN BUS Converter Module

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Support CAN V2.0B
  • High-Speed SPI Interface (10 MHz)
  • Low power consumption
  • Protected from Overvoltage Line Faults up to ±60V
  • ±25kV ESD protection
  • 120 Ohm terminal resistors
  • Operating temperature: -40 to 80C
  • Module size: 43mm * 18mm * 5mm
  • Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
  • RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Contact Sales

DESCRIPTION

PMM0911 is an SPI to CANBUS converter module via LTC2875 Transceiver and MCP2515 controller which allows ICs to use CANBUS differential signaling for robust long-distance serial communication. This module allows for data transmission and communication of a CPU/MCU with any CANBUS device. .

This module can operate normally with a voltage range of (3V to 3.6V) or (4.5V to 5.5V) and needs an external power supply.

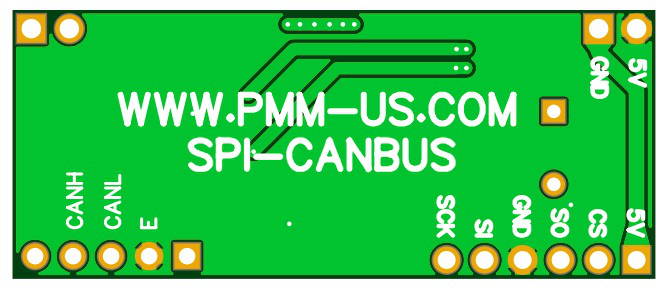

BOARD PINOUT

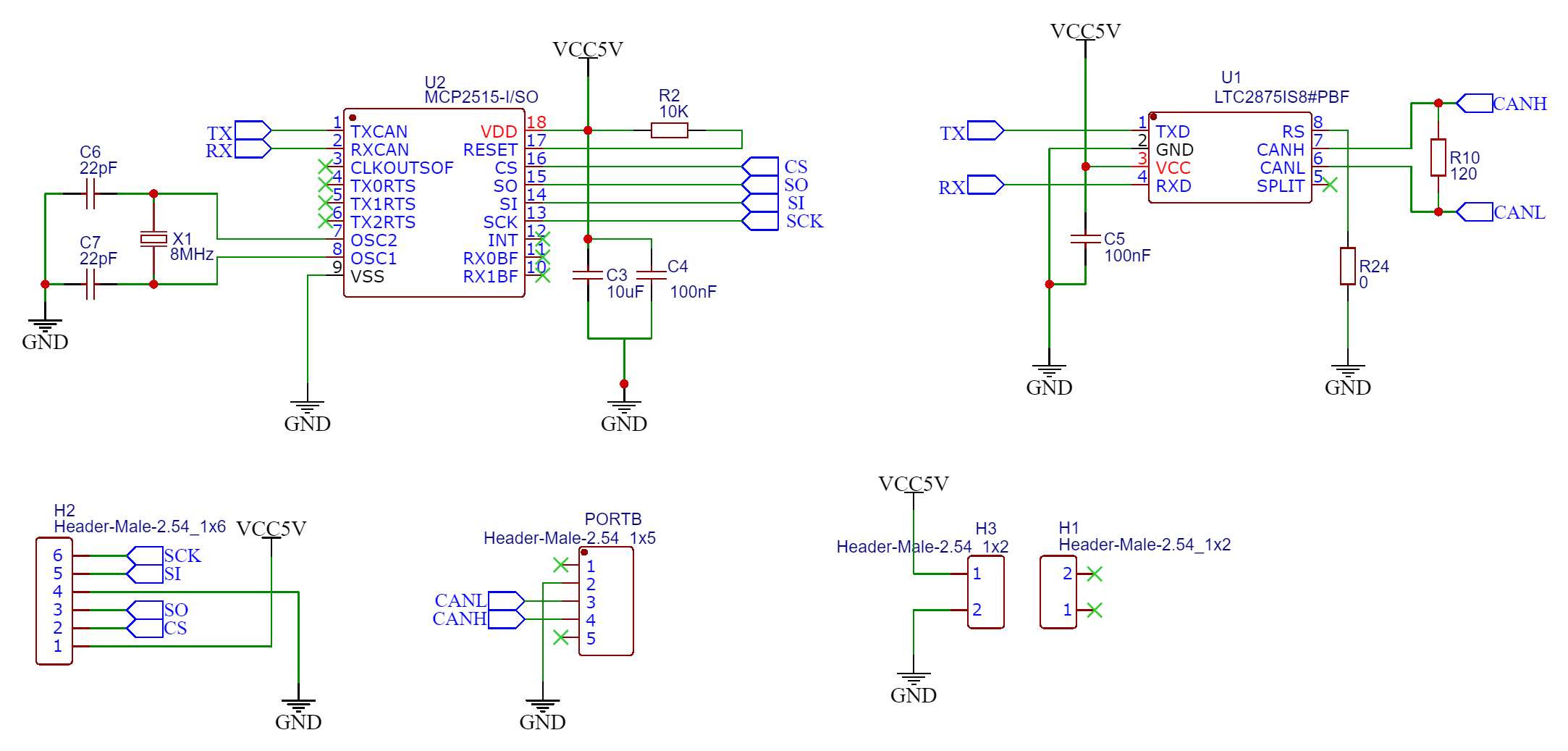

SCHEMATIC DIAGRAM

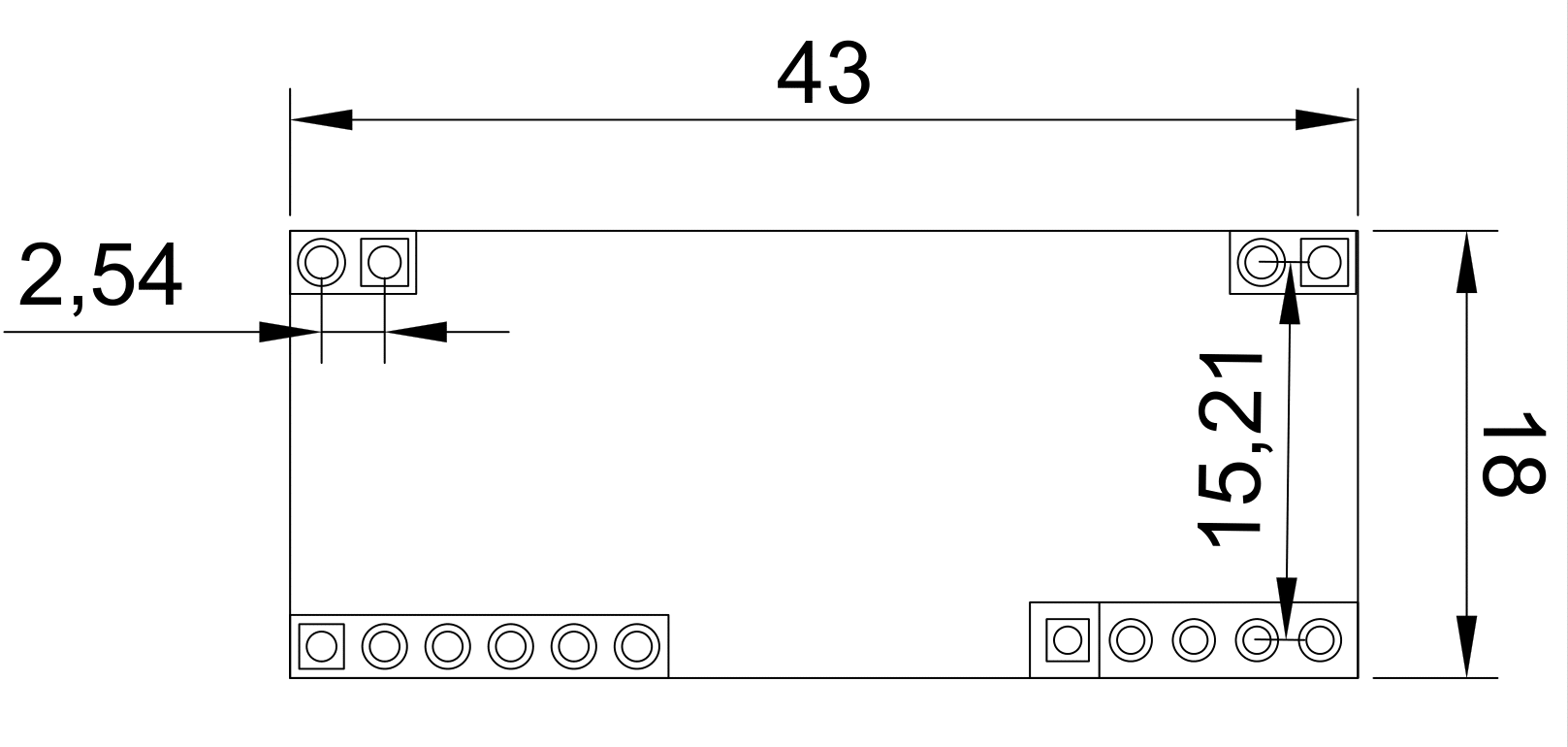

DIMENSIONS
