KEY FEATURES
- Support CAN V2.0B
- High-Speed SPI Interface (10 MHz)
- Low power consumption
- Isolated power
- Data isolation: Up to 5000 VRMS isolation rating with up to 12.8 kV surge capability
- Protected from Overvoltage Line Faults up to ±60V
- ±25kV ESD protection
- 120 Ohm terminal resistors
- Operating temperature -40 to 80C

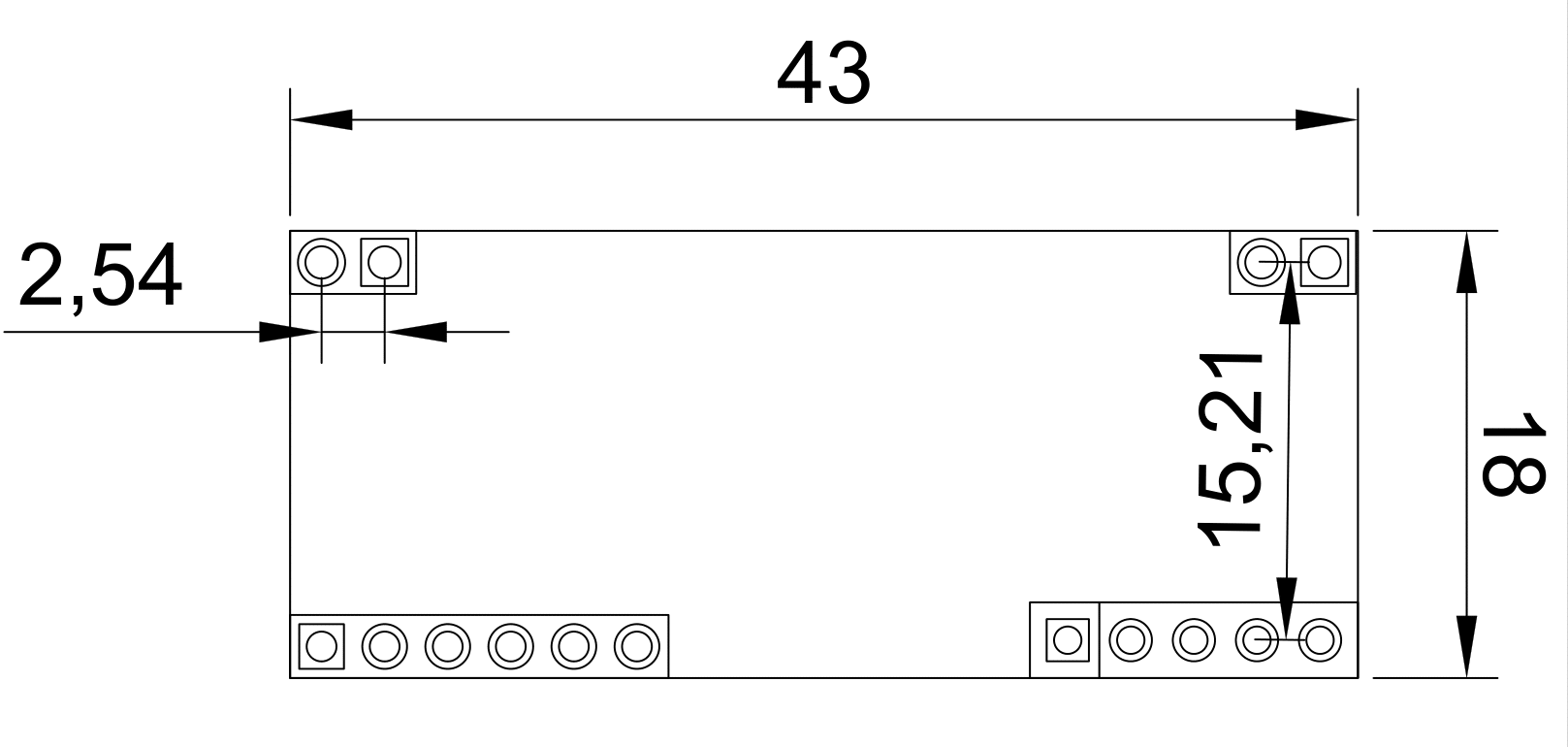

- Module size: 43mm * 18mm * 5mm
- Vertical and horizontal mounting options,compatible with standard DIP/SIP pinout
- RoHS Compliant

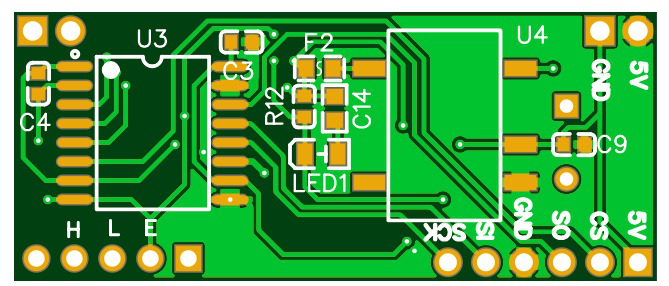

- Proven PCB Layout
- Fully Assembled and Tested
