PMM - Power Meter Monitor

PMM0915

UART/TTL to RS232 Converter Module

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Compatible with 3.3V and 5.0V power supply and signals
  • Operates up to 250 Kbits/s
  • Operating temperature: -40 to 800C
  • Very high EMC and EMI performance
  • Electrical interference and noise is greatly reduced by the presence of a large copper area
  • Low Supply Current: 300 μA (Typical)
  • ESD Protection for RS-232 Bus Pins ±15-kV IEC ESD
  • Module size: 43mm * 18mm * 3mm
  • Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
  • RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Contact Sales

DESCRIPTION

PMM0915 is a TTL to RS232 converter module via MAX232 TTL to RS-232 Interface chipset which allows ICs to use RS-232 differential signaling for robust long-distance serial communications. This module allows for data transmission and communication of a CPU/MCU with any RS232 device either using full mode (full duplex) or null mode (half duplex).

PMM0915 has ±15-kV IEC ESD protection pin to pin and operate at data signaling rates up to 250 Kbit/s and a maximum of 30-V/μs driver output slew rate. Moreover, it has the ability to work under difficult environmental conditions.

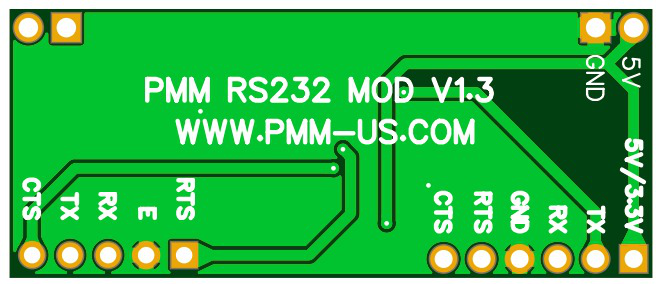

BOARD PINOUT

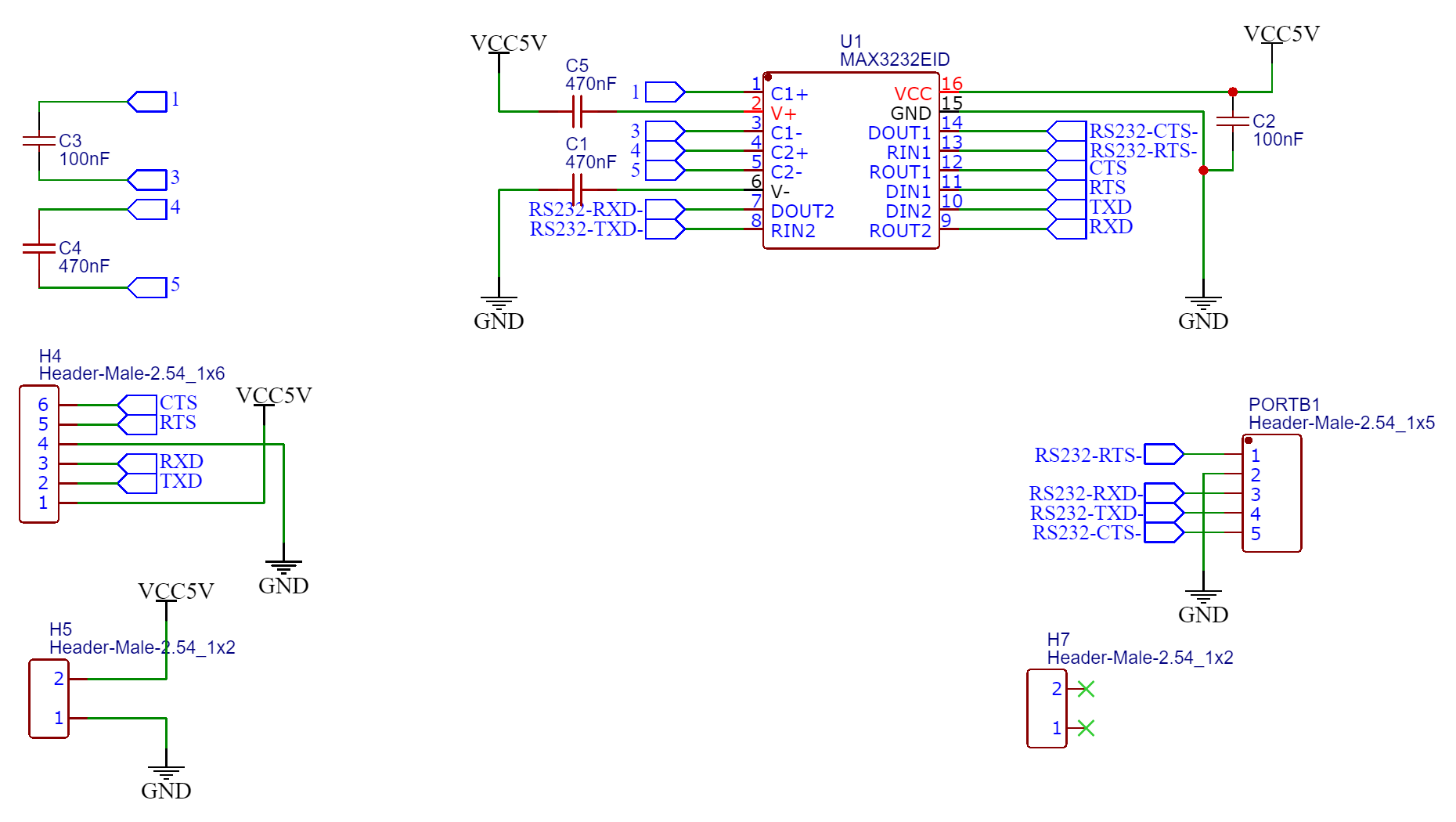

SCHEMATIC DIAGRAM

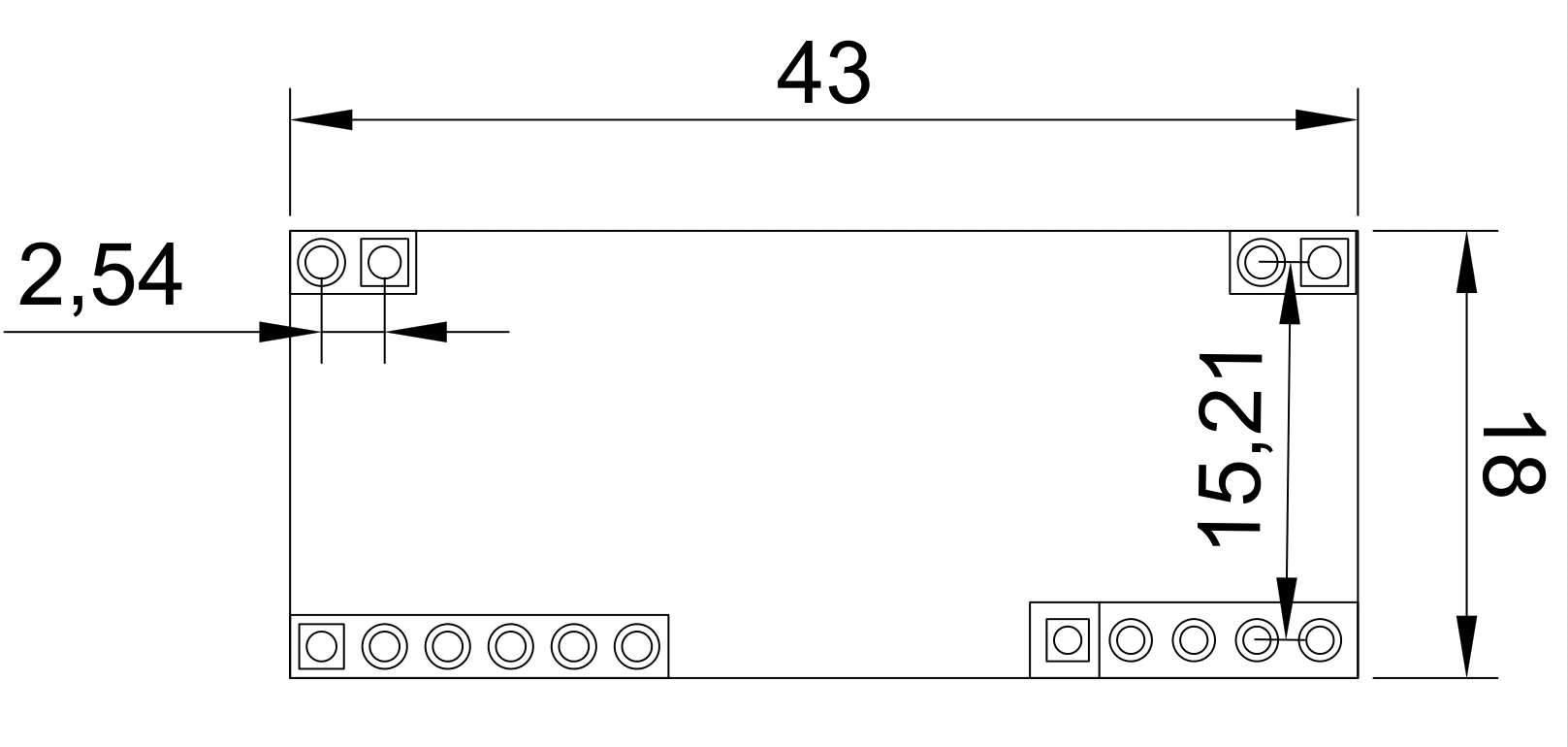

DIMENSIONS
