PMM - Power Meter Monitor

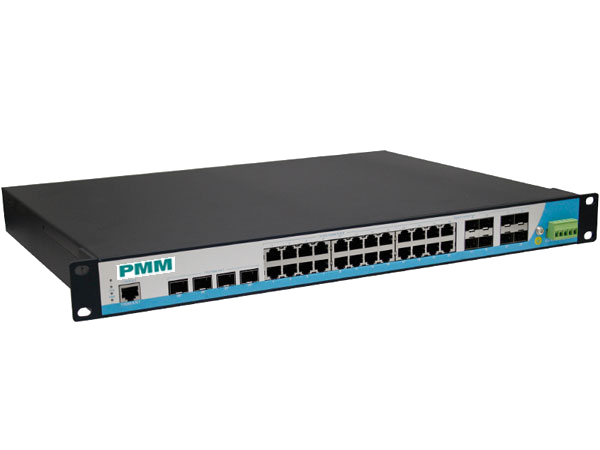

PMM0307

L3 FULL GIGABIT INDUSTRIAL ETHERNET PoE SWITCH WITH 10G SFP

KEY FEATURES

  • Advanced layer 3 management PoE switch
  • 24 Gigabit PoE ports + 8 x 10G Gigabits + 1 Console port
  • Supports IEEE 802.3, IEEE 802.3u IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x IEEE 802.3ad, IEEE 802.1ab-2005,LLDP, IEEE802.w,IEEE802.1q,IEEE 802.1p,QoS/CoS
  • Supports PoE Power Management, PoE Watchdog based on data stream detection
  • Supports: IEEE802.3af (15.4w), IEEE802.3at (30w), IEEE802.3bt (90w)
  • Supports: STP (802.1D, RSTP (802.1w), MSTP (802.1s), ERPS
  • Supports SNMP v1/v2/v3
  • Supports IGMP Snooping , Static multicast filtering and MLD Snooping
  • Supports 802.1x port and AAA Certification, Enhance network security
  • Supports WEB, Telnet，CLI,SSH management
  • Supports lightning protection, surge: General Mode 6KV, Differential Mode2KV, ESD: 15KV
  • Supports EMC EN55032 standard
  • Built to meet all Power substation requirements
  • Wide range of power supply options
  • -40 to 85°C (-40 to 185°F) system operating temperature

Contact Sales

DESCRIPTION

PMM0307 is a low-power Industrial Ethernet Switch, certified by industrial environment and supports FCC, CE, CCC and RoHS standards; reliable industrial design ensures uninterrupted automation system stable operation.

PMM switches provide advanced network management capabilities; redundant ring, loop protection, VLAN, QOS, speed control, port mirroring and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites, since it is covered by a durable metal chassis which was designed and tested on the field to withstand shock, vibration, extended temperature ranges and challenging elements of a harsh environment. All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications

APPLICATION

PMM0307 is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.

Moreover, PMM0307 offers the client a wide range of interfaces covering most of the industrial standards and applications:

  • Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators
  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
  • Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications
