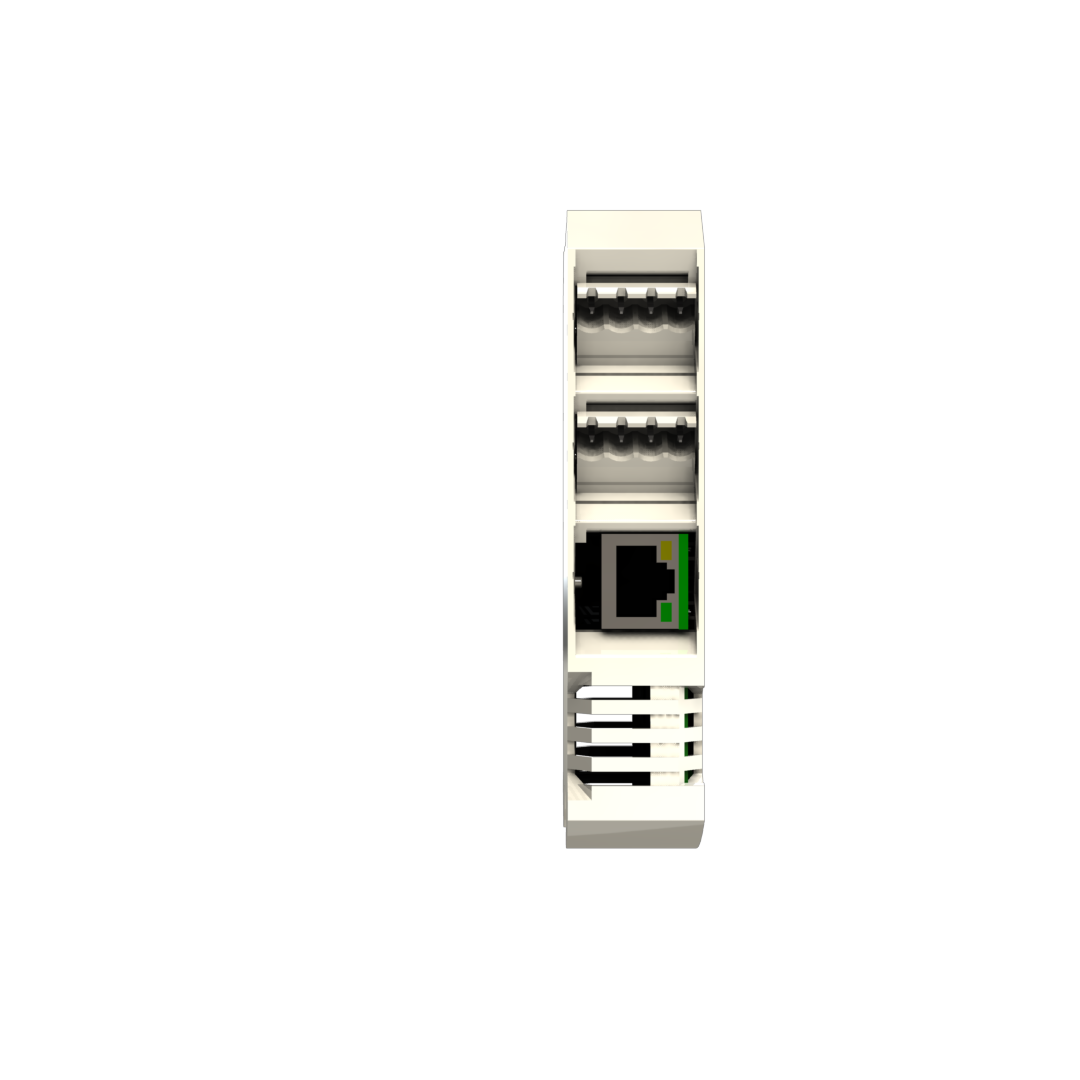

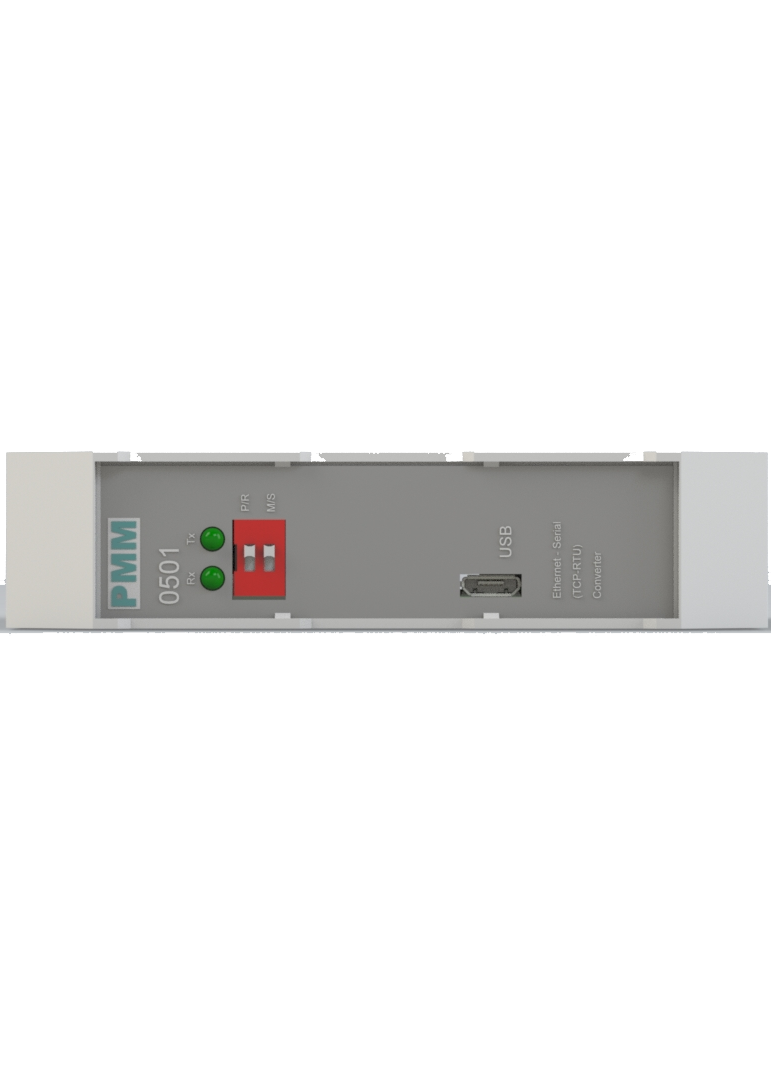

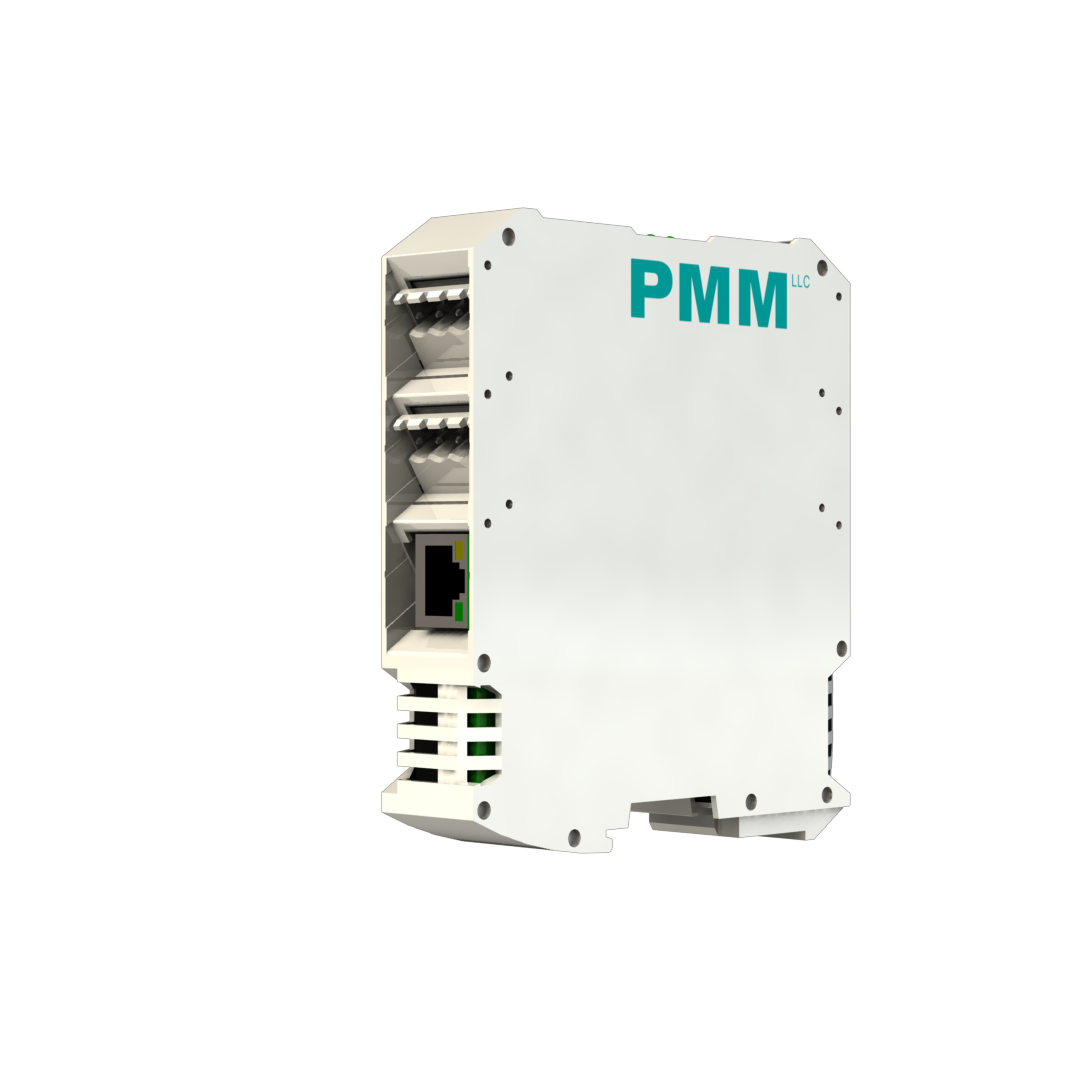

PMM - Power Meter Monitor

PMM0501

Ethernet - Serial Converter

KEY FEATURES

  • Converts smoothly Between Ethernet to serial (bridge)
  • Up to 4 simultaneous Ethernet masters
  • Can be used as Modbus converter through using PMM Vcom windows software
  • Effortless configuration via web-based server
  • 32-bit ARM core microcontroller, with 48 MHz clock
  • Embedded traffic monitoring with diagnostic information for easy trouble shooting
  • Baud rate: up to 1Mbps
  • Operating temperature: -40 to 75°C (-40 to 167°F)
  • EMI, EMS, EMC and shock protected
  • 10-56VDC Supply voltage with Overvoltage and reverse polarity protection
  • Serial port with power surge ±2.5kV isolation protection
More than 10 in stock
Base Price:137.403 $

Contact Sales

DESCRIPTION

PMM0501 hardware provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect any type of industrial solution network such as the SCADA system.This slave device is effortlessly incorporated into an existing Modbus TCP network from any Modbus RTU device.

PMM0501 industrial grade media converter can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.

This device can be ordered with multiple power supply ratings to select from.

APPLICATIONS

PMM0501 can perform efficiently and effectively in the PV, substation and industrial applications as:

  • Ethernet - Rs485 General Converter
