PMM - Power Meter Monitor

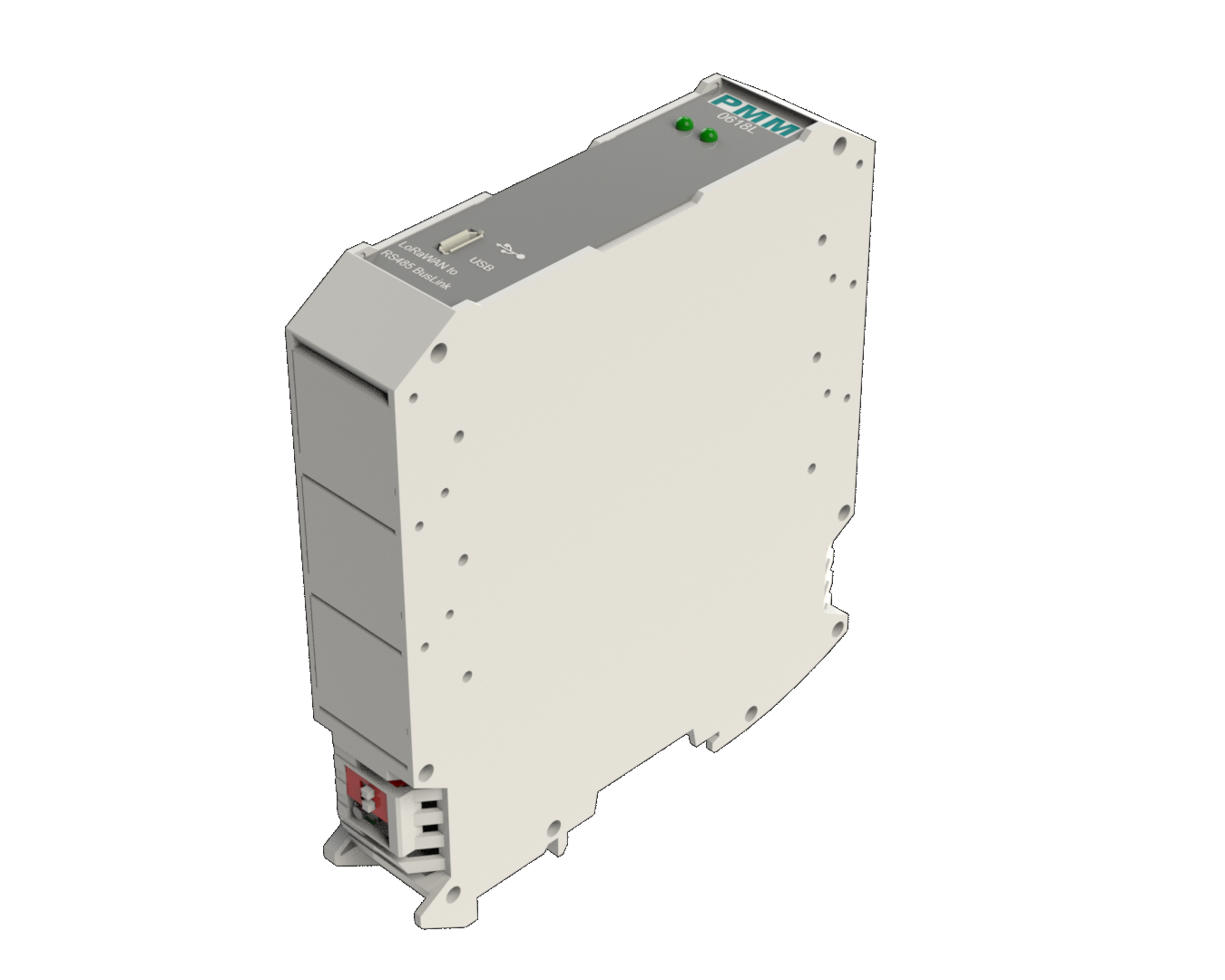

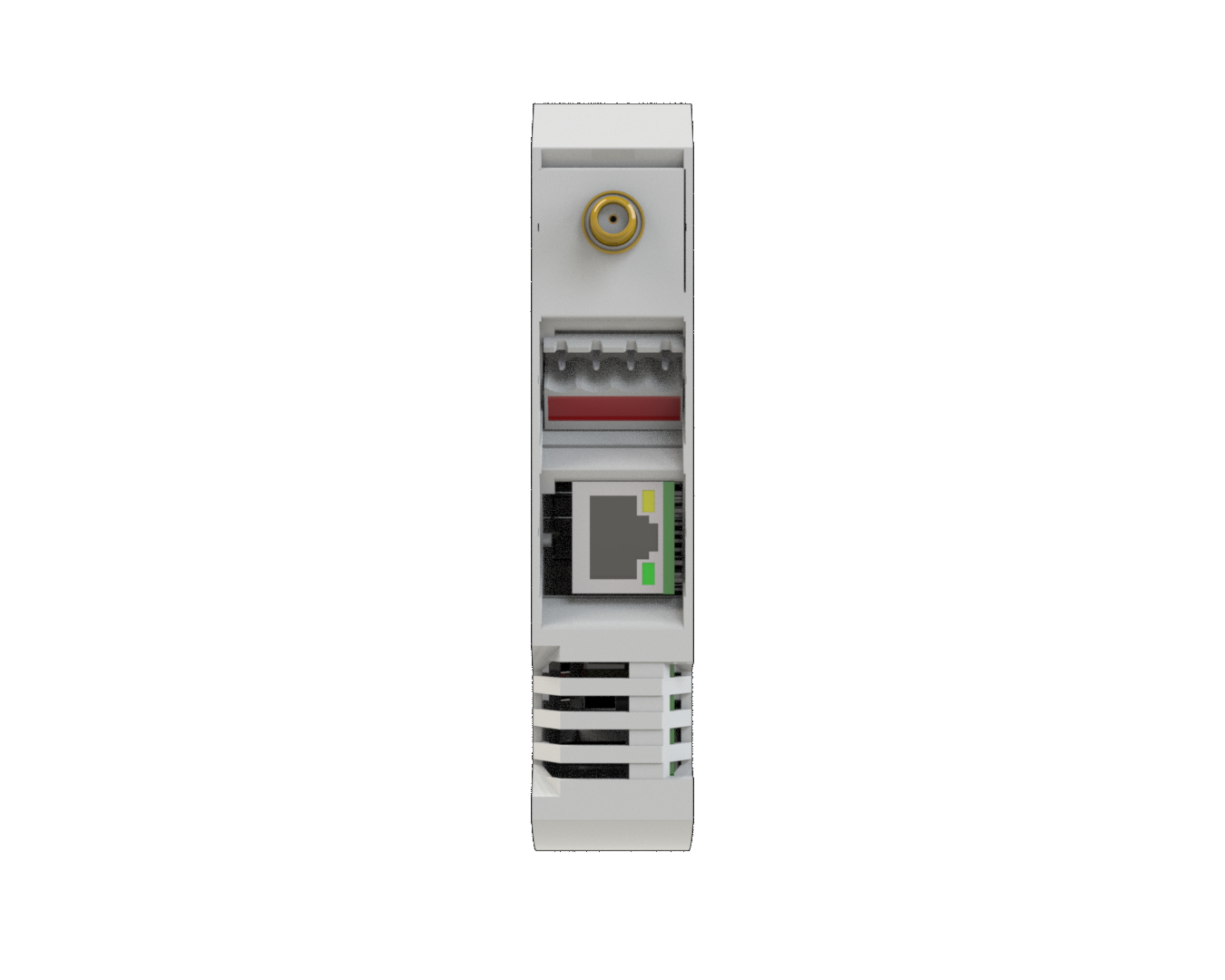

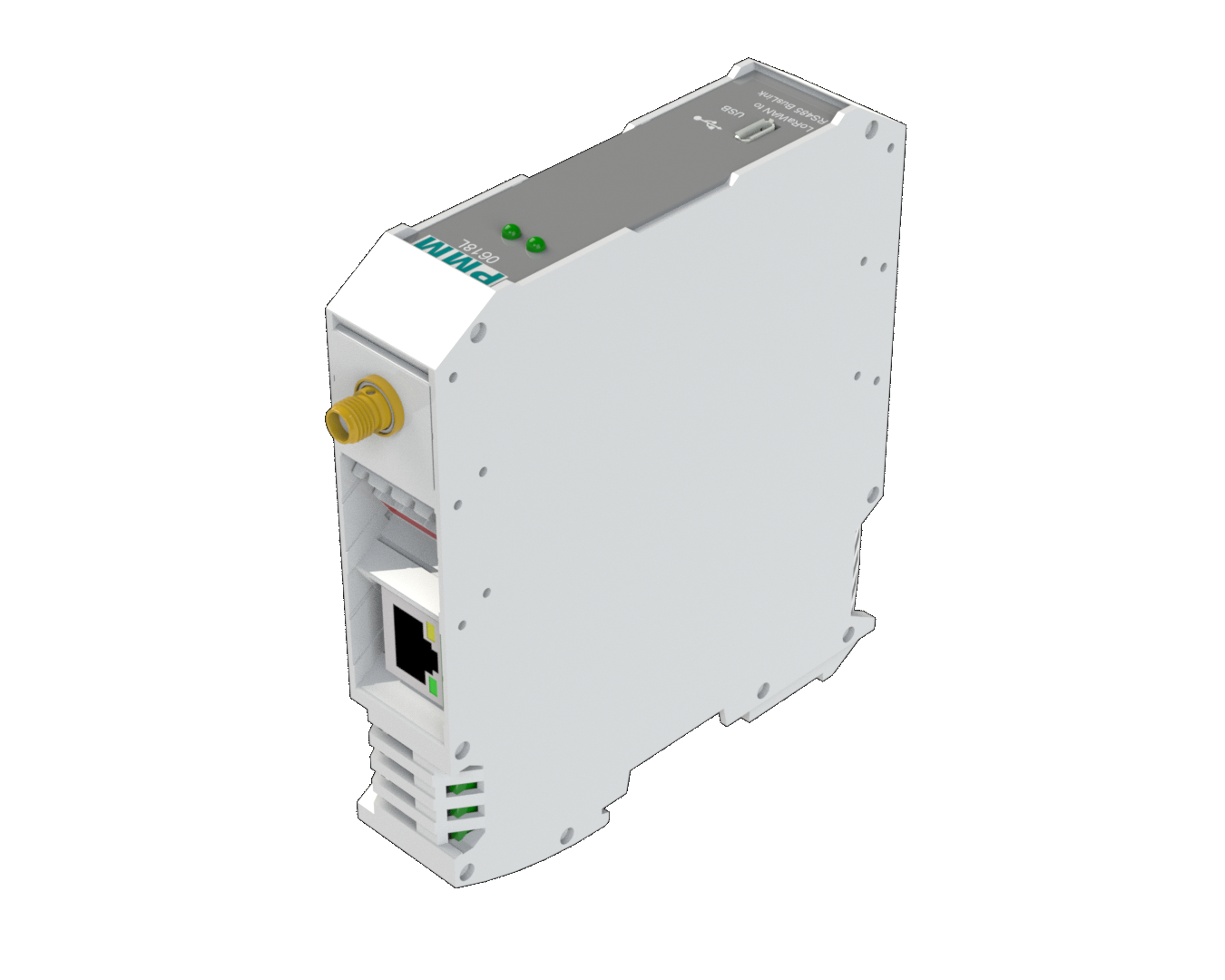

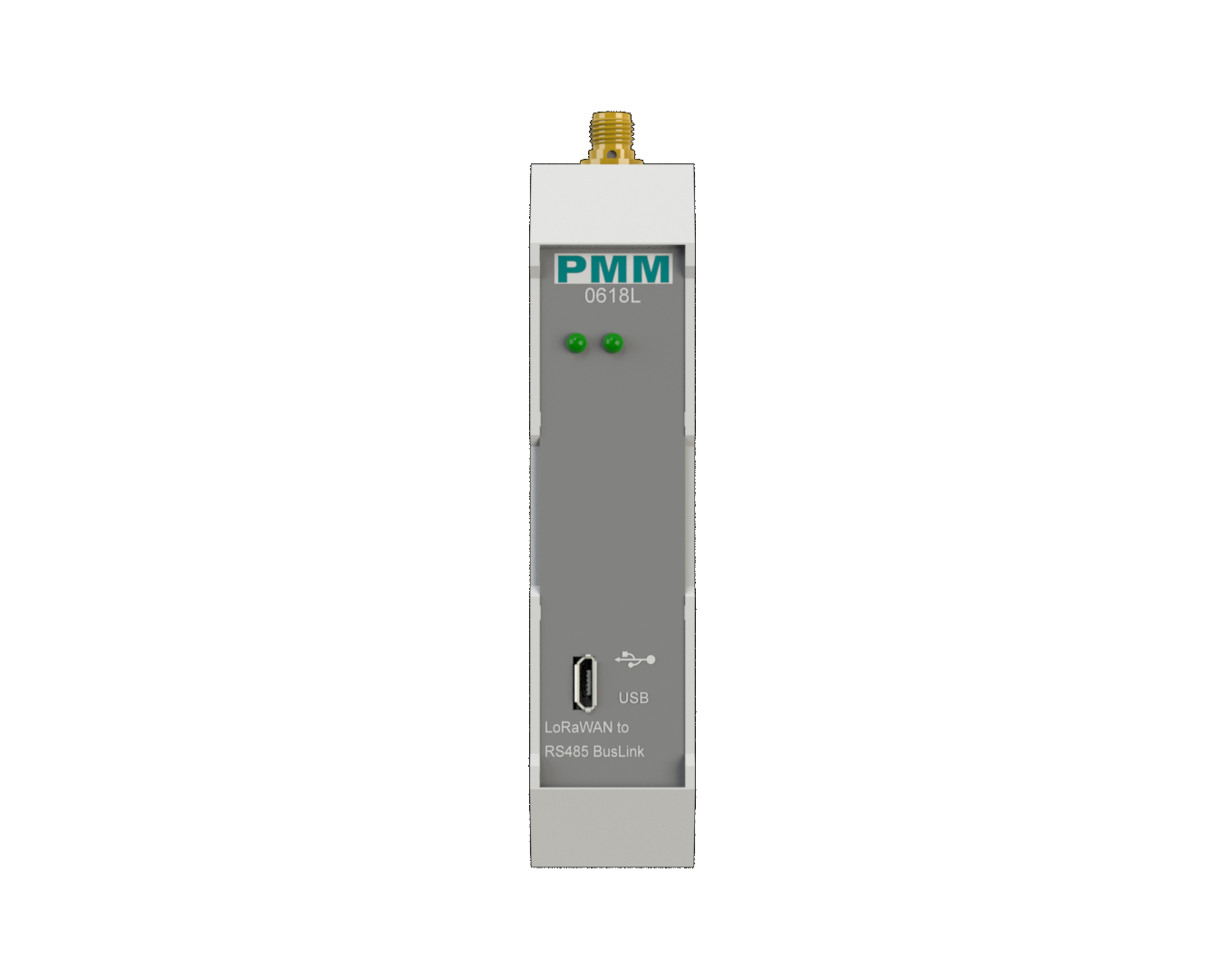

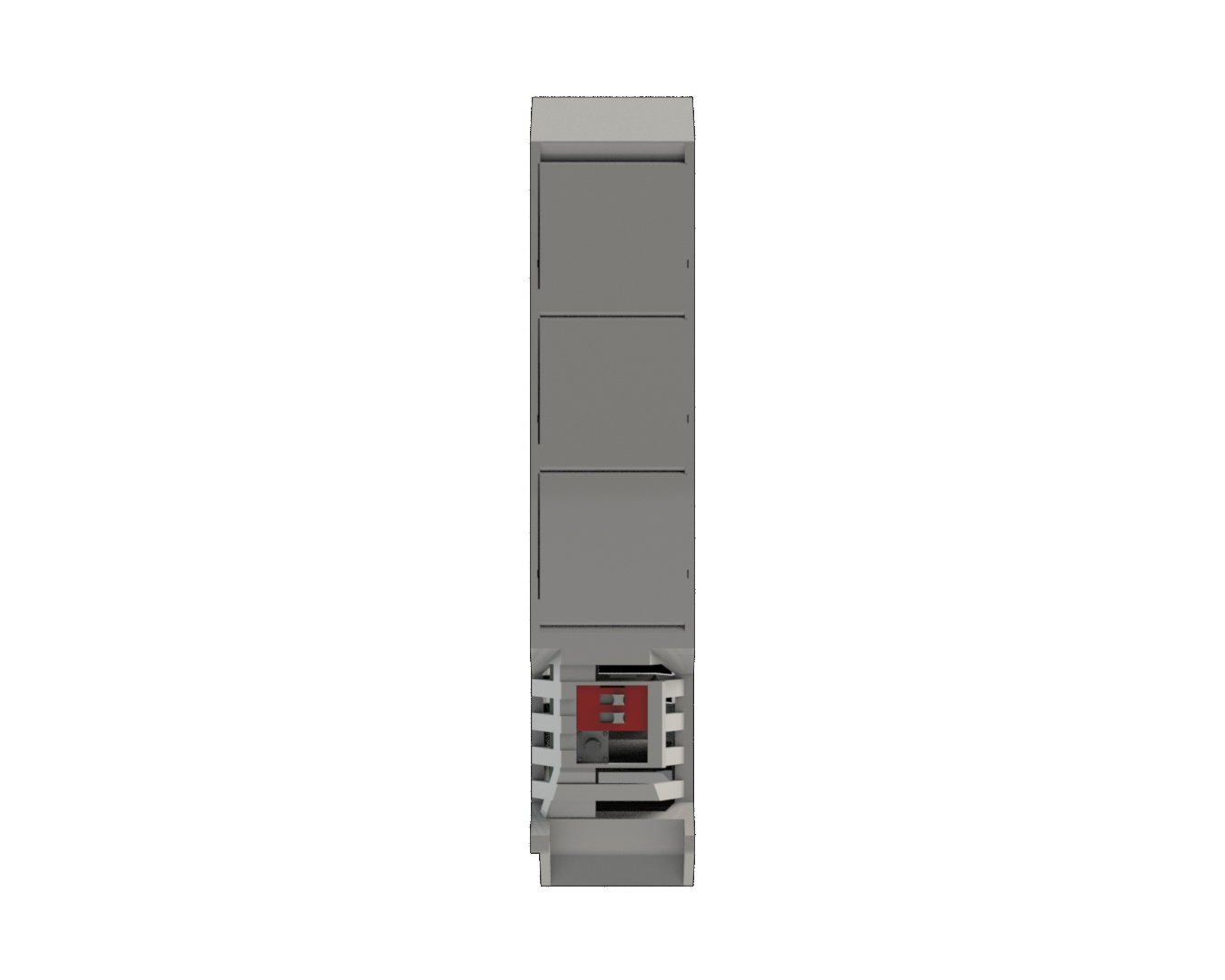

PMM0618L

LoRaWAN to RS485 BusLink

KEY FEATURES

  • Simple to set up and cost effective
  • Support Modbus protocol devices
  • STM32L072CZT6 MCU
  • SX1276/78 LoRa Wireless Chip
  • LoRaWAN Class C protocol
  • Flexible rules to connect different RS485 devices
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
  • AT Commands to change parameters
  • Uplink on periodically or polling
  • Downlink to send RS485 commands
  • 1x Ethernet interface 10/100Base-T
  • 1x RS485 with power surge ±2.5kV isolation protection
  • Overvoltage and reverse polarity protected
  • Meeting several industrial standards
  • Wide range of power supply options (10-60 VDC)
  • Onboard Termination resistor via dip switch
  • EMI, EMS, EMC, and shock protected
  • Standard din rail mounting option
  • -40 to 85 °C Operating temperature
  • 5% to 90% Non-condensing Relative Humidity
1 in stock
Base Price:320 $

Contact Sales

DESCRIPTION

PMM0618L is a reliable, and simple to set up interface converter that implements data exchange. LoRaWAN TO RS485 Converter converts the LoRaWAN signal into RS485 wireless signal which simplify the IoT installation and reduce the installation/maintaining cost. It allows the user to monitor and control RS485 devices and reach extremely long ranges. It provides ultra-long range spread spectrum communication, and high interference immunity while minimizing current consumption.

For data uplink, RS485-LN sends user-defined commands to RS485 devices and get the return from the RS485 devices. RS485-LN will process these returns according to the user-define rule to get the final payload to upload to LoRaWAN server. For data downlink, RS485-LN runs in LoRaWAN Class C and will forward the commands from LoRaWAN server to RS485 devices.

The LoRaWAN specification is a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly connect battery operated ‘things’ to the internet in regional, national or global networks, and targets key Internet of Things (IoT) requirements such as bi-directional communication, end-to-end security, mobility and localization services.


APPLICATIONS

It can be widely used in but not limited to the following applications

  • Irrigation systems
  • Smart metering
  • Smart cities
  • Smart phones detection
  • Smart Buildings/ Building automation
  • Home Automation Logistics
  • Supply Chain Management
  • Smart Factory
  • Smart Agriculture
