PMM - Power Meter Monitor

PMM0620-024

(12 - 60) x Digital Input 24VDC

KEY FEATURES

  • (12 - 60) x Isolated Digital Input 24VDC
  • 32-bit ARM core microcontroller with 48 MHz clock
  • Hot swap redundancy exchange and fail safe ready
  • Stand alone programming or Modular operation modes

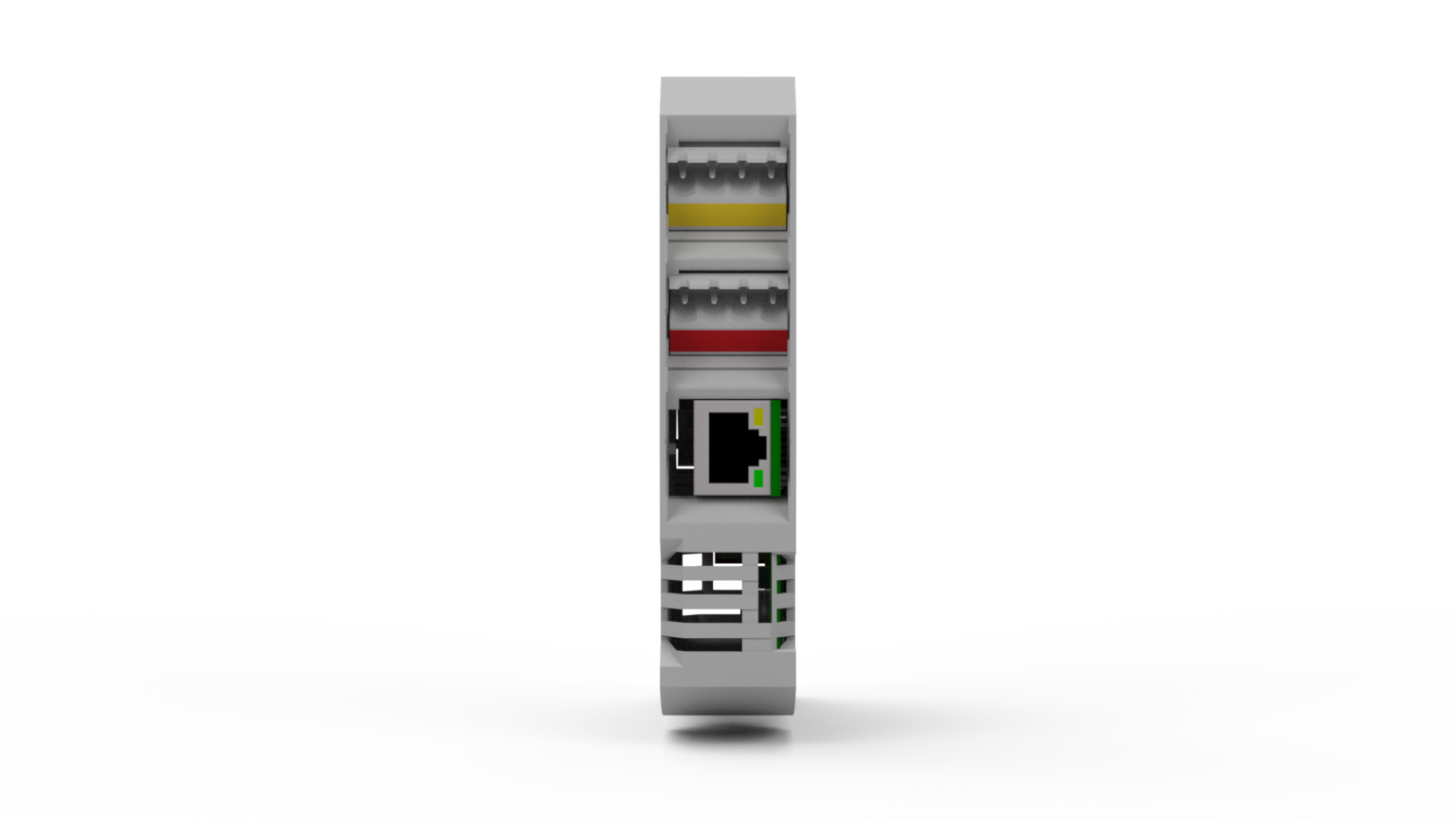

  • 1x Ethernet 10/100 port
  • 1x Serial RS485 port with power surge ±2.5kV isolation protection
  • Overvoltage and reverse polarity protected
  • Onboard Termination resistor via dip switch
  • Wide range of power supply options (9-56 VDC)
  • 5000V system/field isolation
  • Simple to set up and cost effective
  • High speed data reading with high reliability and accuracy
  • EMI, EMS, EMC and shock protected
  • -40 to 80 °C (-40 to 185°F) Operating temperature
  • 5% to 90% Non-condensing Relative Humidity
  • Standard 35mm din rail mounting bracket
More than 10 in stock
Base Price:99.4 $

Contact Sales

DESCRIPTION

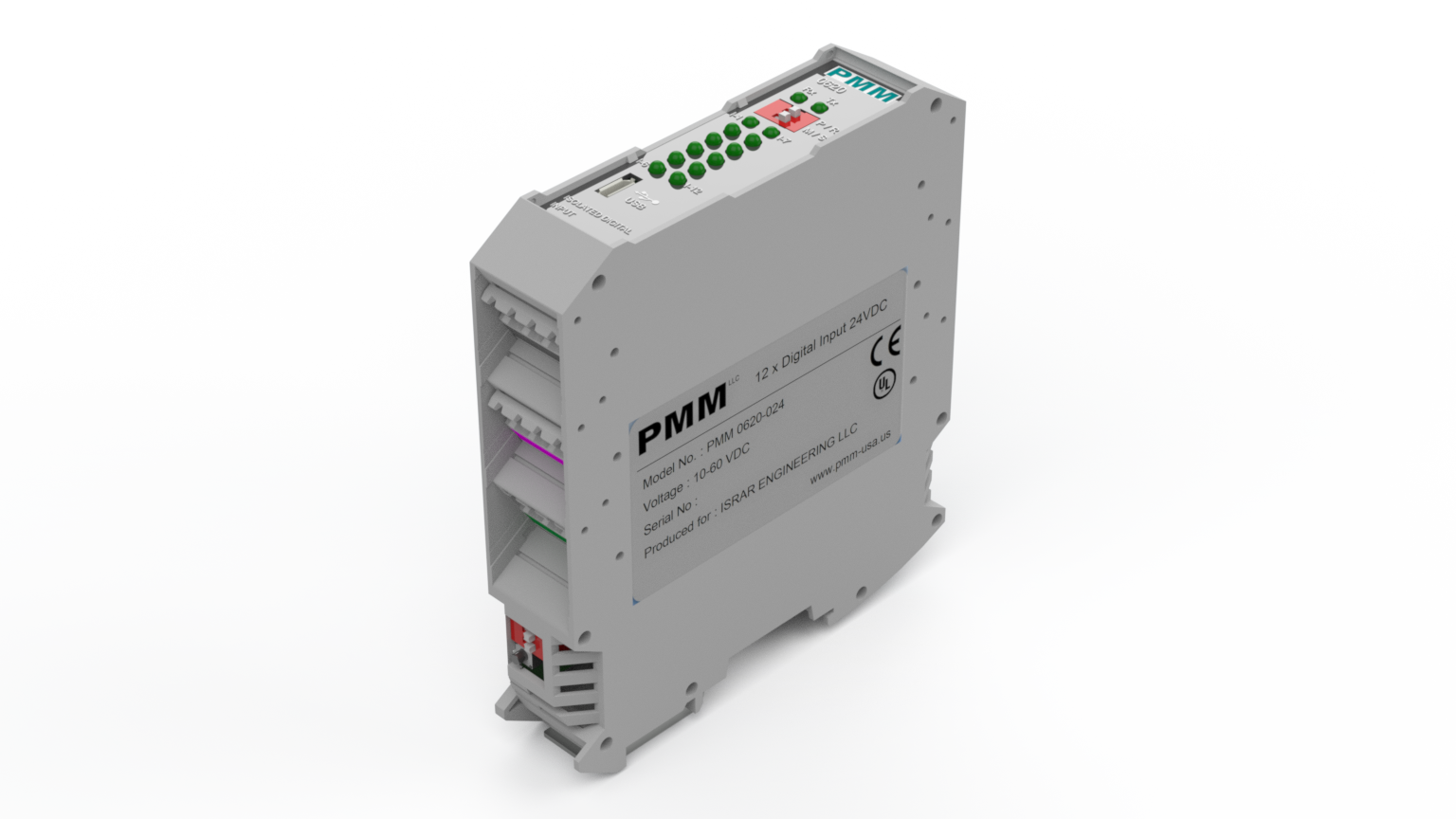

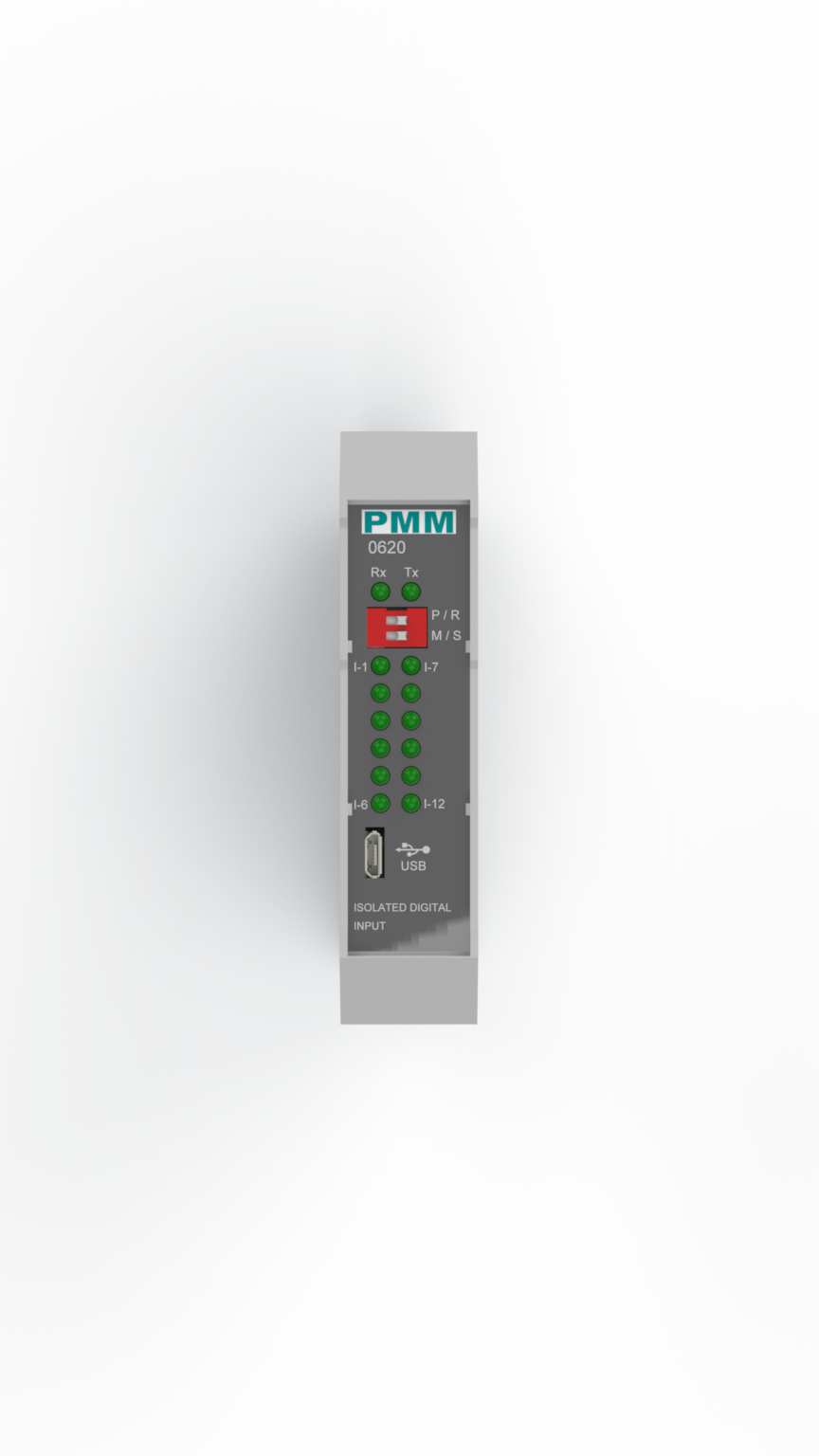

PMM0620-024 is a reliable, and simple to set up digital Input module that has 12 isolated channels basically and can be extended to 60 channels using PMM0620 extensions. The module receives analog signals from sensors and field devices of 24V range. Then, the module converts the signal to 0-5 V scale to make the signals compatible with the CPU. In addition, the isolation feature provides high protection against ground potential differences between field signals and the CPU. PMM0620-024 is widely used in signal interface switching of PLC, single chip or other industrial control board.

Moreover, PMM0620-024 operates under three operational modes:

  • Modular operation mode: the module is connected to a PLC by RS485 and implement specific function assigned by the PLC.
  • Fail Safe mode: the module should be pre-programmed in case of lost connection with the PLC to carry on its function effectively.
  • Stand-alone: the module can be programmed to work as PLC and control the field devices.

    • In addition, PMM0620-024 industrial grade IO module can function under harsh environmental conditions of any site. It is reliable, easy to configure and has an extreme accuracy.
