PMM - Power Meter Monitor

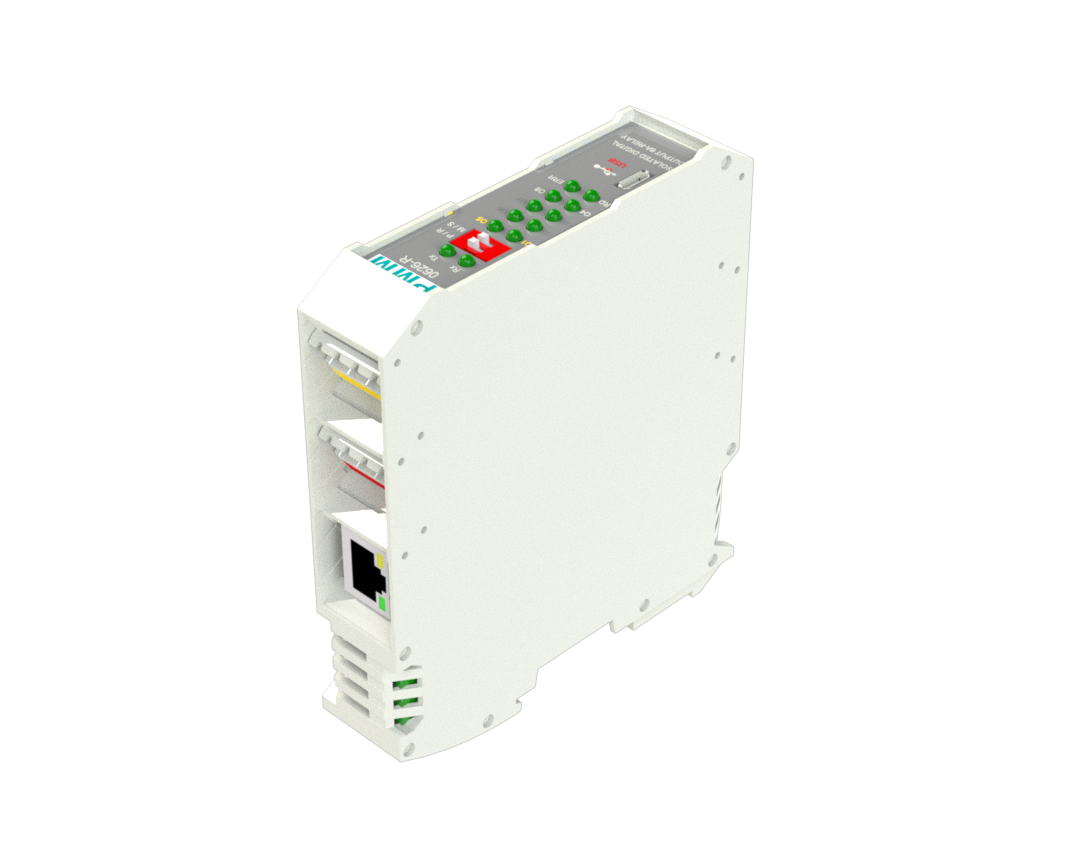

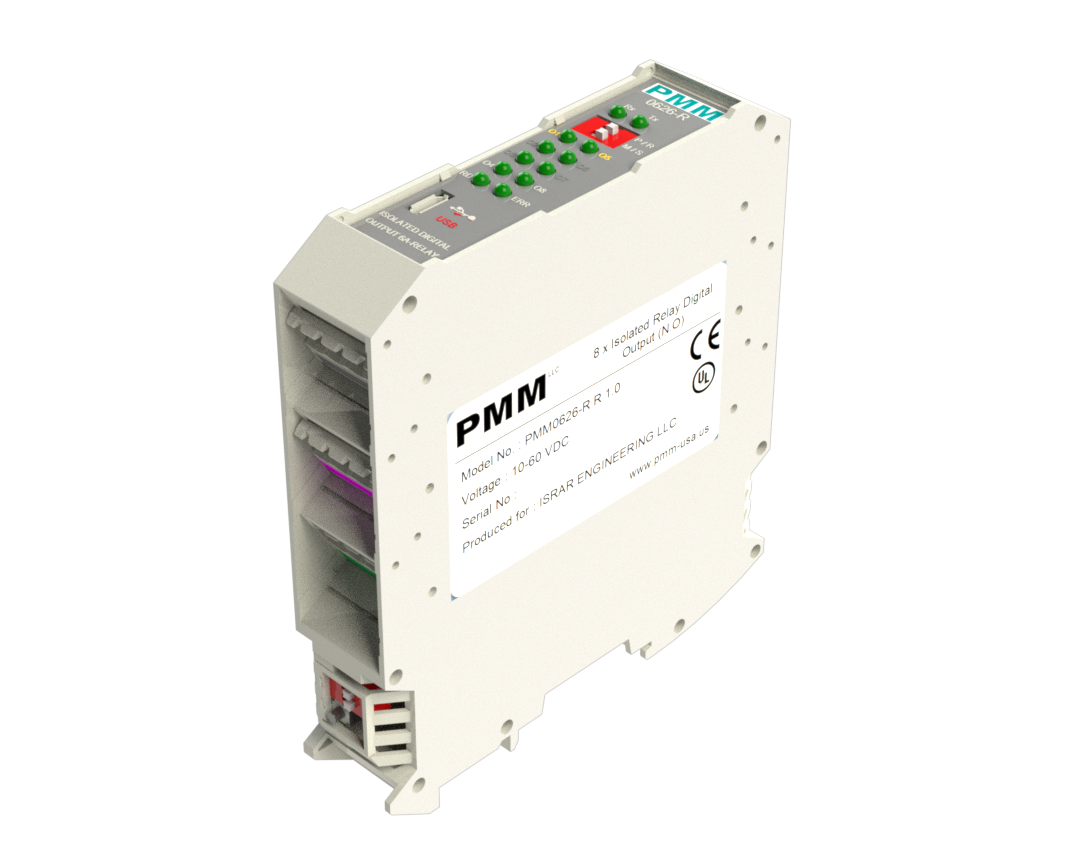

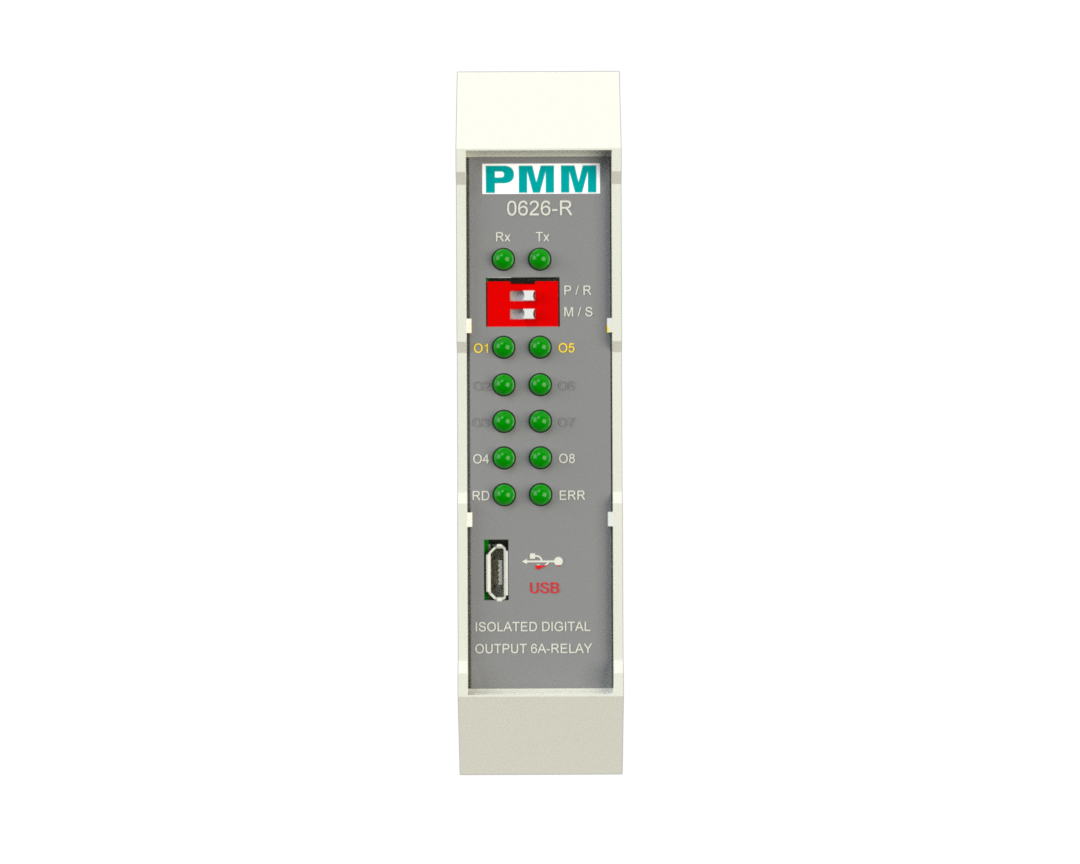

PMM0626

(16/32/64) x Isolated Relay Digital Output (Normally Opened)

KEY FEATURES

  • 32-bit ARM core microcontroller with 48 MHz clock
  • Hot swap redundancy exchange and fail safe ready
  • Stand alone programming or Modular operation modes
  • (16/32/64) x Isolated Relay Digital Output
  • 4000V system/field isolation
  • (16/32/64) selectable output ports
  • Serial port with power surge ±2.5kV isolation protection
  • Wide range of power supply options (9-56 VDC)
  • Overvoltage and reverse polarity protected
  • Simple to set up and cost effective
  • High speed data reading with high reliability and accuracy
  • EMI, EMS, EMC and shock protected
  • Standard 35mm din rail mounting bracket
  • -40 to 80 °C (-40 to 185°F) Operating temperature
  • 5% to 90% Non-condensing Relative Humidity

Contact Sales

DESCRIPTION

PMM0626 is an innovative, and simple to set up (16/32/64) x Isolated Relay Digital Output (Normally Opened) module.This module used when a higher drive capability is required, or when isolation between outputs are required. Each output can be individually switched on or off and can handle up to 6A.

PMM0626 is used to swiftly convert between protocols within a network, it supports up to 8 slave devices per communication port on the same network.

PMM0626 industrial grade IO module can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and renewable energy plants requirements. Furthermore, it covers wide range of field standards of power supply, reliability, easy configuration and long-lasting life.

APPLICATIONS

PMM0626 can perform efficiently and effectively in the substation and industrial applications .

  • IO PLC Module
  • High speed Data acuistion
  • Data logger terminal
  • Digital Stand-alone controller
  • ... and many more.
