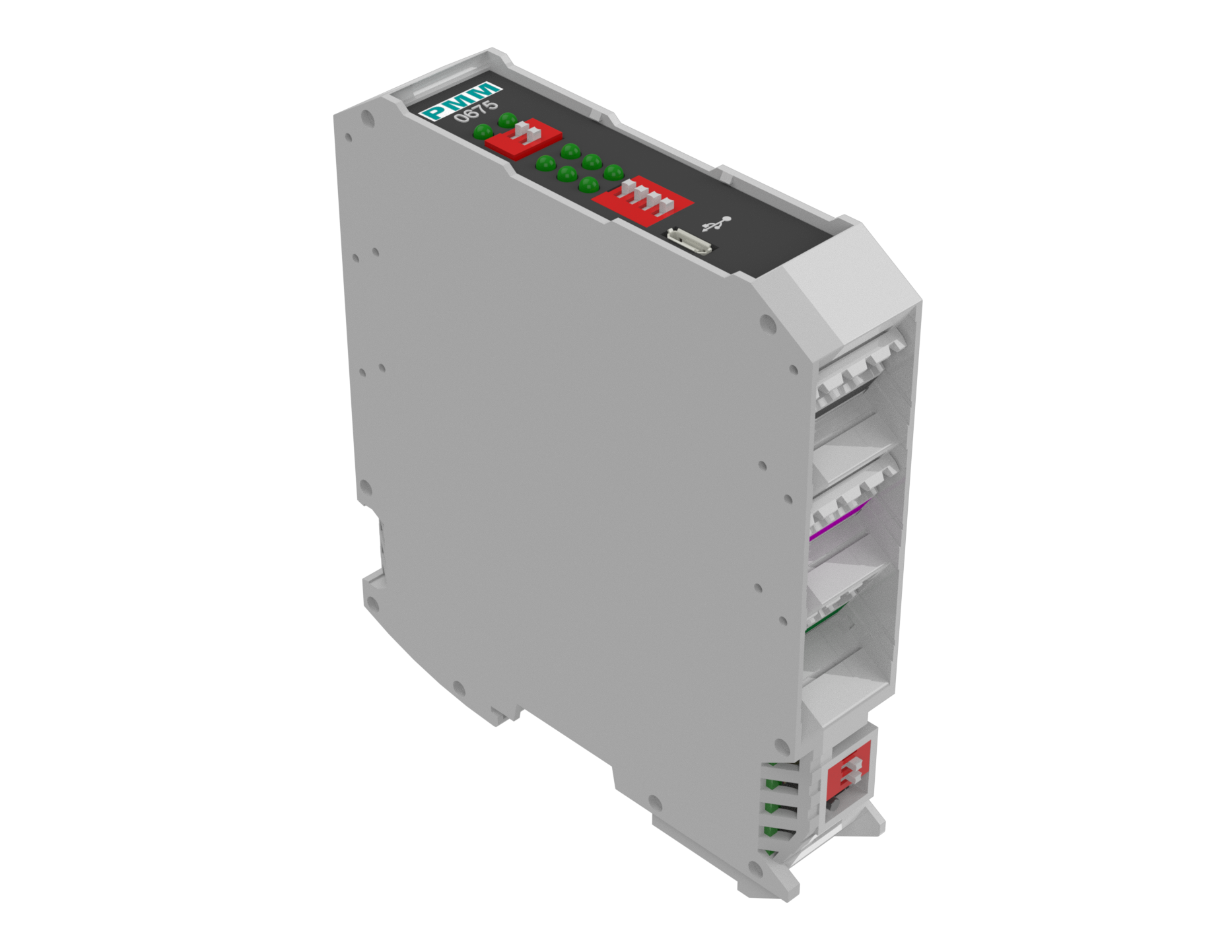

PMM0675

4x Basic Optical Encoder Interface

KEY FEATURES

  • Simple to set up and cost effective
  • Extremely high accuracy and reliability
  • 32-bit ARM core microcontroller with 48 MHz clock
  • High speed data read/write with high reliability and accuracy
  • Hot swap redundancy exchange and fail safe ready
  • Stand-alone programming or Modular operation modes
  • Compatible with both two and four wires encoders
  • Connected with up to four encoders at the same time
  • Compatible with servo motor and stepper motor
  • 1x Ethernet 10/100 port
  • 1x RS485 port
  • Wide range of power supply options (10-60 VDC)
  • Redundant power supply which makes the switch between the power supplies is seamless
  • Standard din rail mounting option
  • -40 to 85 °C (-40 to 185 °F) Operating temperature
  • 5% to 90% Non-condensing Relative Humidity
Out of stock
Out of stock Contact Sales
Base Price:347.119 $

Contact Sales

DESCRIPTION

PMM0675 is reliable, robust and compact optical encoder interface that can be connected to four encoders at the same time, compatible with both two and four wires encoders.

Furthermore, PMM0675 includes incremental and optionally absolute digital encoder interfaces for position verification and closed loop operation.

PMM0675 operates under three operational modes:

  • Modular operation mode: the module is connected to a PLC by RS485 and implement specific function assigned by the PLC.
  • Fail Safe mode: the module should be pre-programmed in case of lost connection with the PLC to carry on its function effectively.
  • Stand-alone: the module can be programmed to work as PLC and control the field devices.

PMM0675 is extremely reliable, precise, cost effective and has extremely high accuracy with minimum error percentage.

In addition, PMM0675 industrial grade IO module can function under harsh environmental conditions of any site. It is reliable, easy to configure and has an extreme accuracy.
