PMM - Power Meter Monitor

PMM0702

Digital input module

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • 1x Digital input 24/48 VDC or 110/220/400 VAC
  • Power and signal isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • High reliability and accuracy
  • Very compact size
  • DIN rail mounting
  • IP54 protection degree
  • Operating temperature: -20°C to +83°C
10 in stock
Base Price:3 $

Contact Sales

DESCRIPTION

PMM0702 is reliable digital input module that has an isolated channel, which receives one of the following rated voltage options: 24,28 VDC or 110,220,400 VAC signals from the field devices based on the client’s requirements.

Moreover, PMM0702 has two LED indicators that indicate the status of the signal transmission for the input channel for diagnostic purposes.

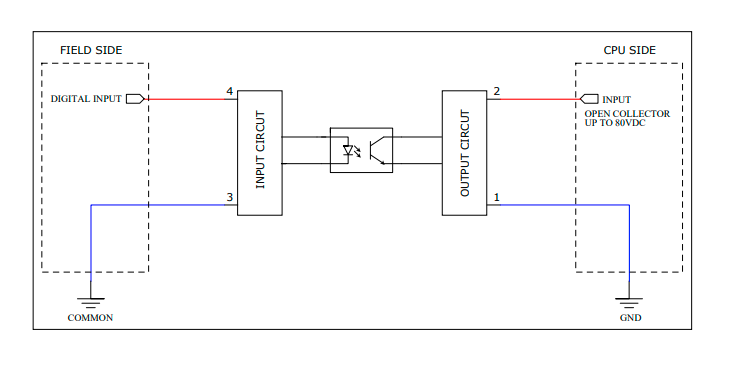

BLOCK DIAGRAM
