PMM - Power Meter Monitor

PMM0704

Relay output 250VAC 2A module

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Relay output 250VAC 2A
  • Both power and signal Isolated module
  • There is no need for an external power supply; operating power supply is 5V DC
  • Highly compacted size
  • DIN rail mounting
  • Operating temperature: -20°C to +83°C
in stock
Base Price:13 $

Contact Sales

DESCRIPTION

PMM0704 is a relay output with an isolated channel (250VAC/2A) module which transmits control signals from the CPU to the connected actuators.

PMM0704 has the ability to deliver 2A to the connected load which makes it highly useful and applicable in a wide range of industrial practices and processes.

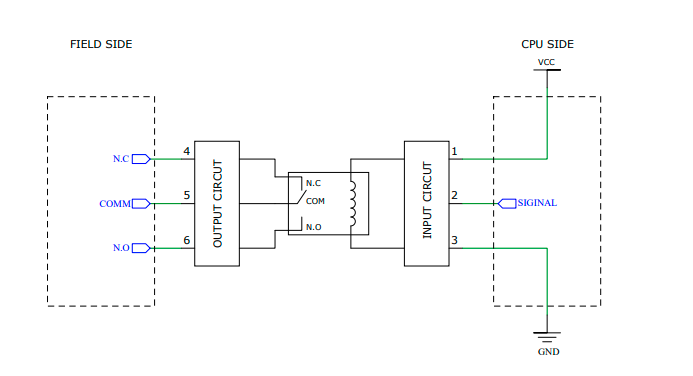

BLOCK DIAGRAM
