KEY FEATURES
- Compatible with thermocouple type K
- Cold Junction Compensation
- Measured temperature range: 0°C to 1500°C

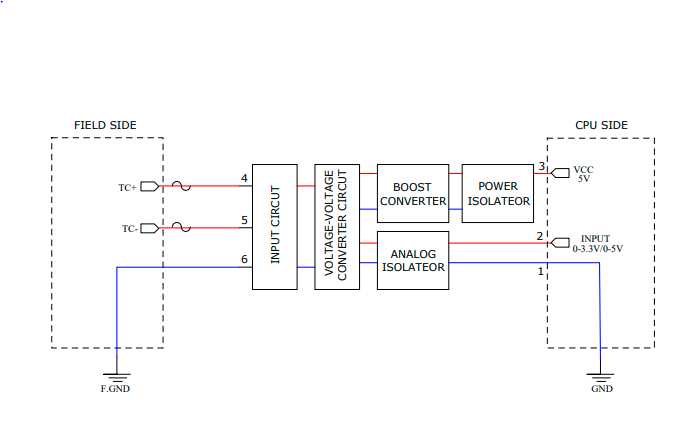

- Both power and signal isolated module
- There is no need for an external power supply; operating power supply is 5V DC
- Current consumption 10mA
- High reliability and accuracy
- Low linearity error less than ± 2°C
- Low power consumption
- Laser wafer adjustment to 1°C initial accuracy
- Cost effective
- Highly compacted size
- DIN rail mounting
- IP54 protection degree
- Operating temperature: -20°C to +83°C
in stock
Base Price:18 $
