PMM - Power Meter Monitor

PMM0741

AO (PWM) to (0-5V)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • Analog Signal output range (0-3.3V/0-5V/0-10V)
  • Both power and signal isolated module
  • No need for an external power supply; operating power supply is 5V DC
  • Current consumption less than 40mA
  • Error percentage does not exceed 0.1% of full scale.
  • Highly compacted size
  • DIN rail mounting
  • IP54 protection degree
  • Operating temperature: -20°C to +83°C
in stock
Base Price:19 $

Contact Sales

DESCRIPTION

PMM0741 is an analog output module with isolated output channel. Which is widely used in signal interface switching of PLC, single chip or other industrial control board. As the module receives pulse width modulation (PMW) signals from the CPU ranges from 0-3.3 V 0-5 V. Then, the module is capable of performing one of the following functions:

  • Maintain the signals voltage range but isolated.
  • Convert the signals voltage range to one of the following ranges (0-3.3V, 0-5V, and 0-10V) to make the signals compatible with the connected actuators.

    • Moreover, PMM0741 performs signal conversion at extremely high accuracy with minimum possible errors which makes it very reliable as well as it is very easy to use as there is no need for software configuration.

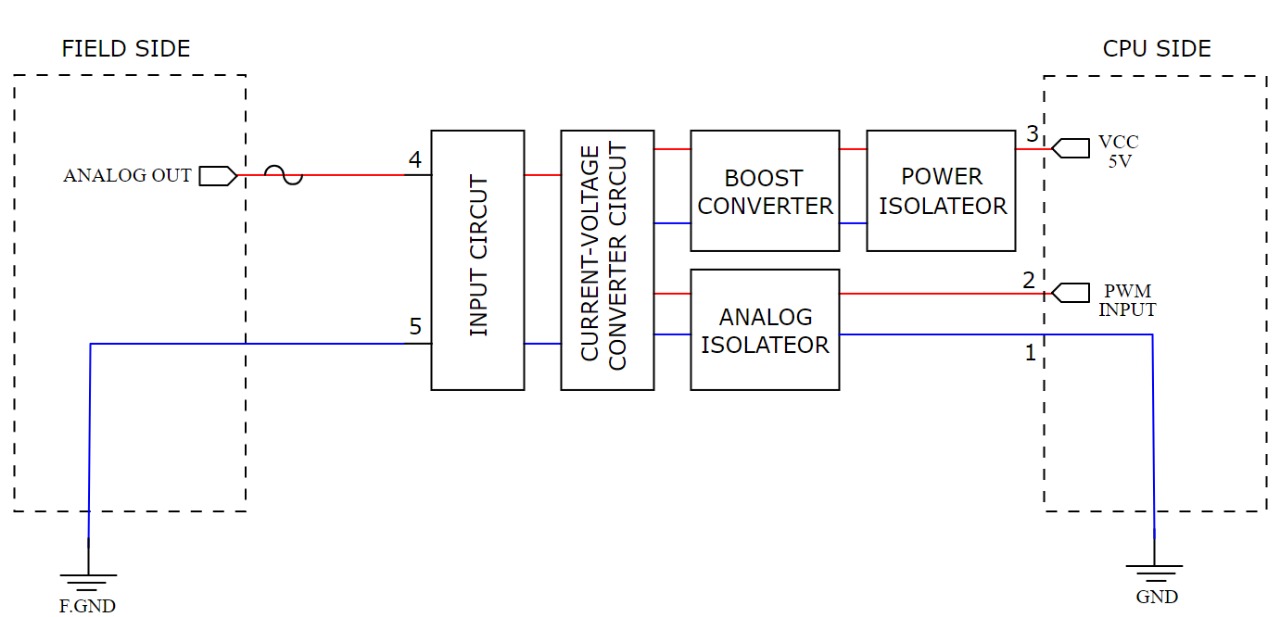

    BLOCK DIAGRAM
