PMM - Power Meter Monitor

PMM0771

1000VDC to (4-20mA)

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

  • 1x Analog input (1000DC)
  • Error percentage does not exceed 0.1% of full scale
  • 5KV system/field isolation
  • No software configuration is needed
  • Highly compacted size
  • DIN rail mounting
  • IP54 protection degree
  • Operating temperature: -20°C to +83°C
in stock
Base Price:85 $

Contact Sales

DESCRIPTION

PMM0771 is an analog input module that has isolated input channel. It is used for many industrial applications as the module receives 1000VDC analog signals from sensors and field. Then, converts the signals to 4-20 mA scale to make them compatible with the controller. The module Is fully isolated and need an external 24VDC power supply.

Moreover, PMM0771 performs signal conversion at extremely high accuracy with minimum possible errors which makes it very reliable as well as it is very easy to use as there is no need for software configuration.

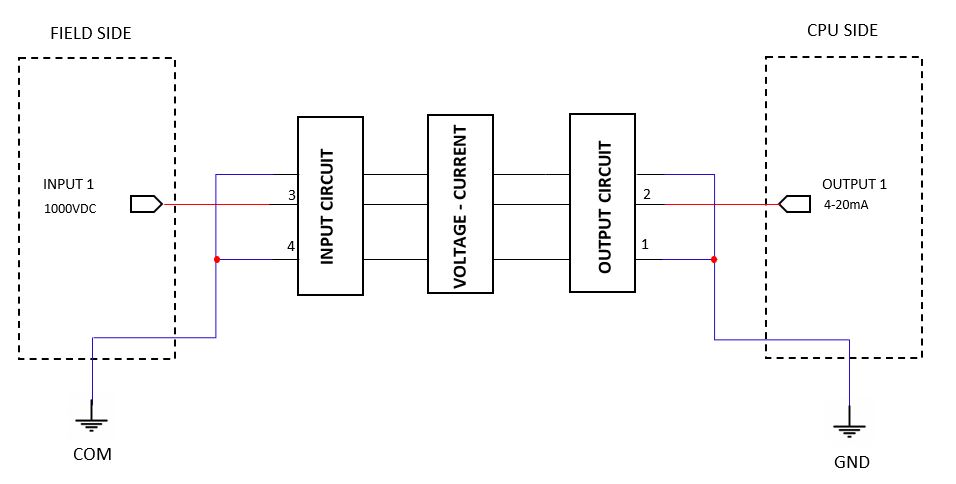

BLOCK DIAGRAM
