KEY FEATURES
- Bidirectional conversion between UART and CAN is available
-
Three types of conversion modes :
- - Transparent conversion
- - Transparent tape identification
- - Protocol mode conversion
-
Two CAN frame data types transmission methods:
- - Fixed configuration
- - Serial frame data designation
- Parameter configuration via UART interface is available
- UART baud rate: 300~921600
- Parameter setting mode entered via software and hardware
- Factory settings are restored via software or hardware
-
Multiple indications :
- - Power indicator
- - Status indicator
- - Mode indicator

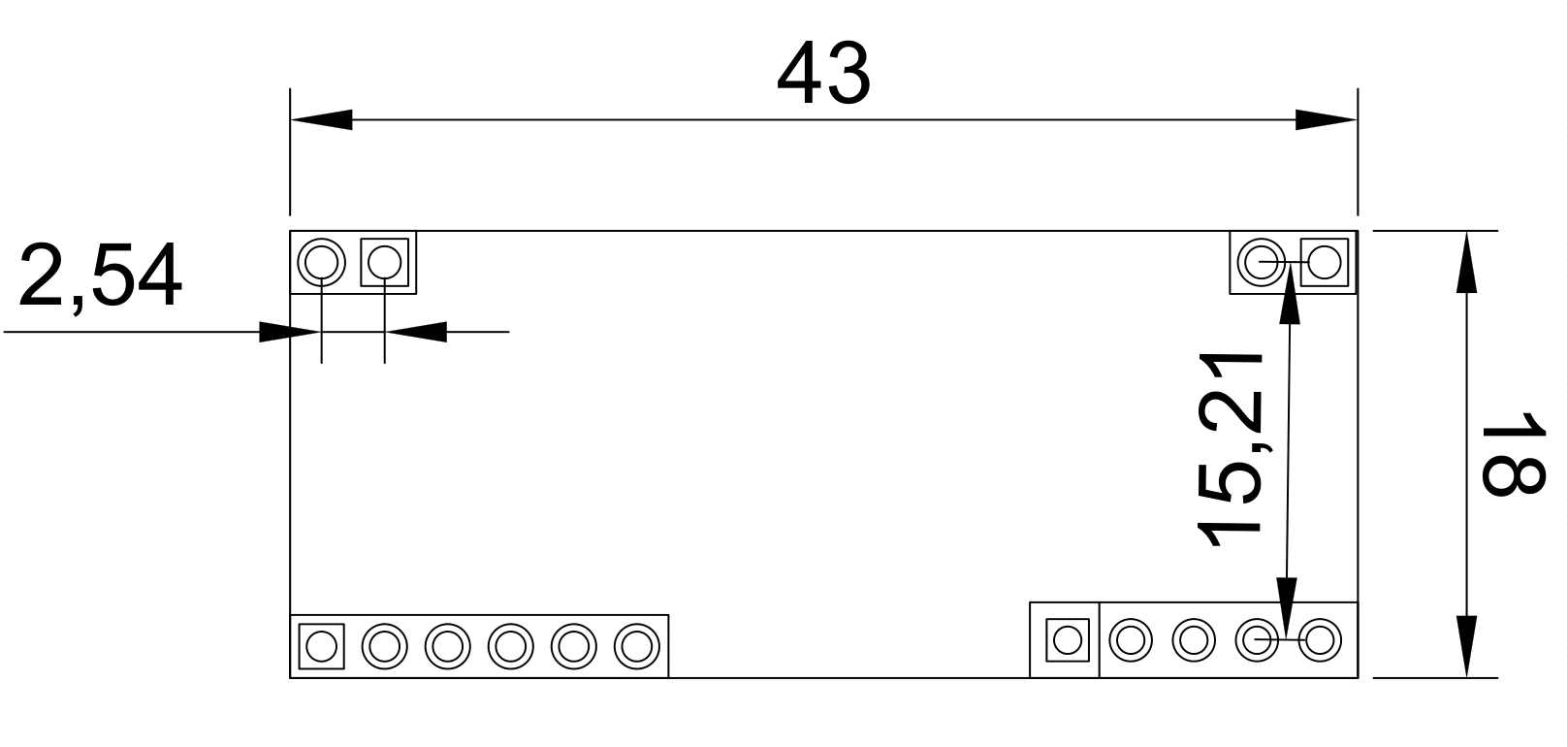

- Module size: 43mm * 18mm * 3mme
- Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
- RoHS Compliant

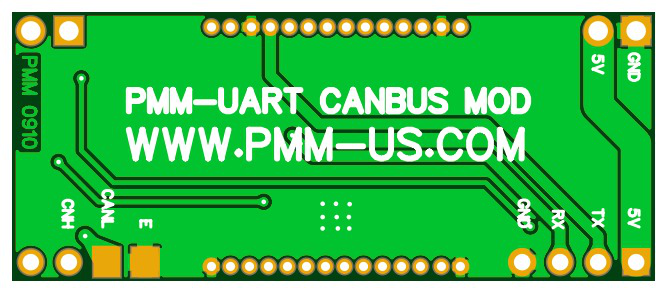

- Proven PCB Layout
- Fully Assembled and Tested
