KEY FEATURES
- Compatible with 3.3V and 5.0V power supply and signals
- Supports baud rate: 110-256000 bps
- Transmittance distances up to 1200 meters
- Operating temperature: -40 to 800C
- Very high EMC and EMI performance
- RXT and TXD signal indicator LEDs to monitor, send and receive status
- 120 Ohm terminal resistors

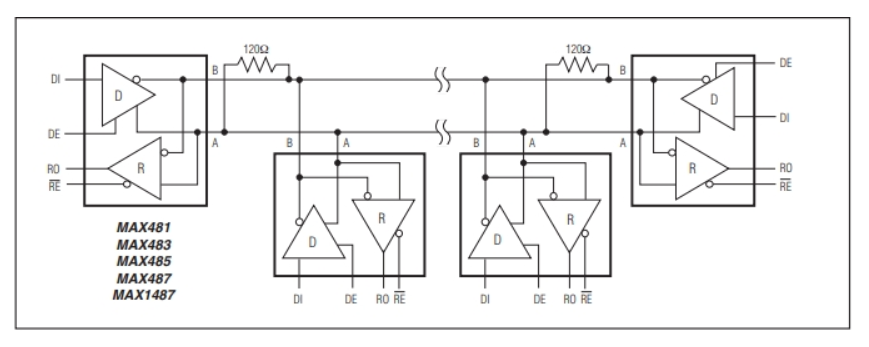

- Support multi-machine communication, allowing access for up to 32 devices on bus
- Electrical interference and noise is greatly reduced by the presence of a large copper area
- Radio transmission anti-jamming and lightning protection

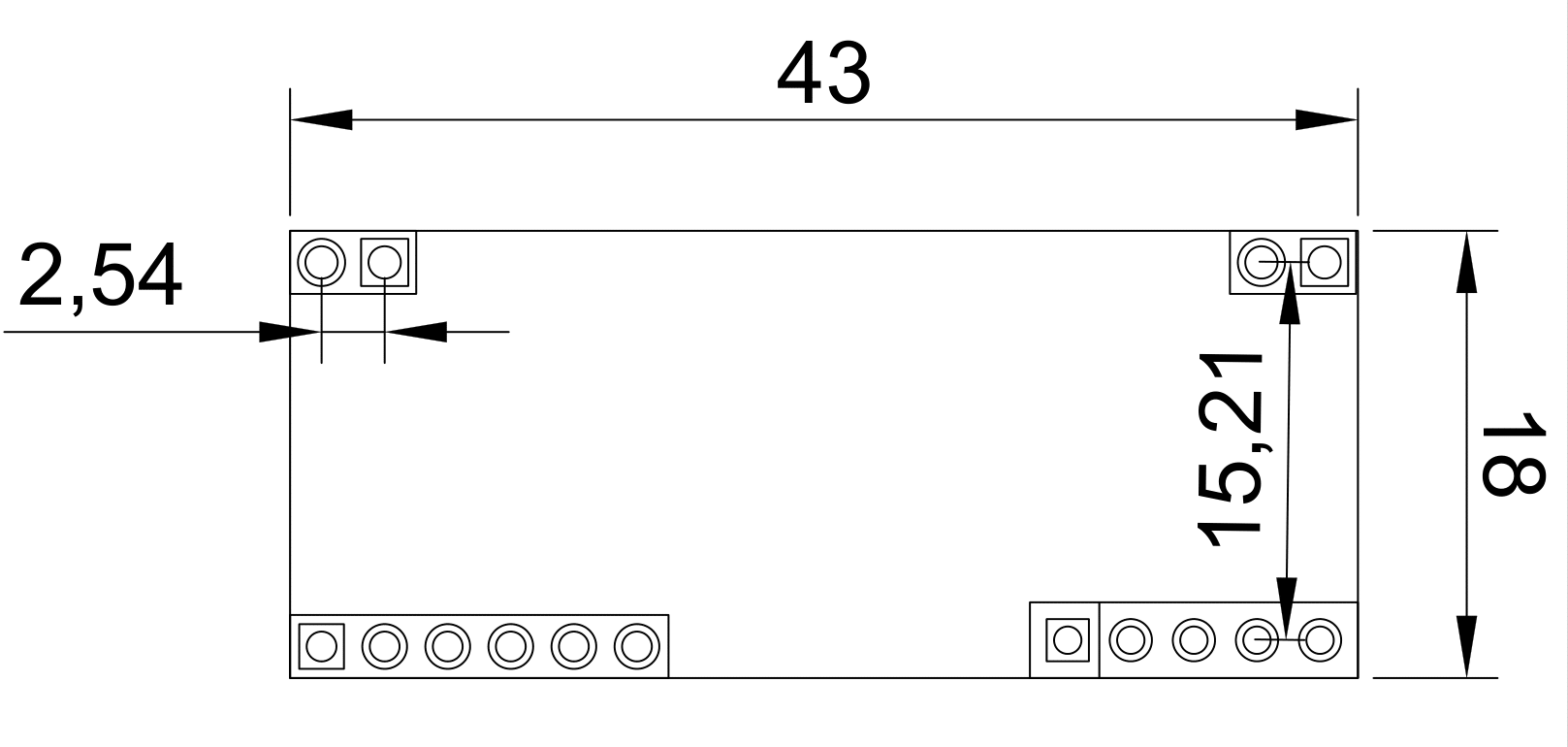

- Module size: 43mm * 18mm * 3mm
- Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
- RoHS Compliant

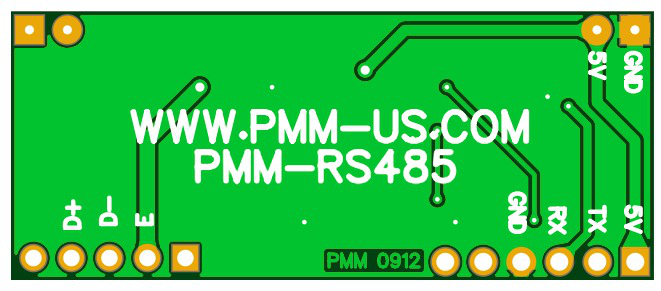

- Proven PCB Layout
- Fully Assembled and Tested
