PMM - Power Meter Monitor

PMM1003

(16xInputs - 16xOutputs) IO Mirror - Advanced with Ethernet , RS485 , Fiber optic and GSM options

PMM-da-720-series-image-1-(1).jpg | PMM

KEY FEATURES

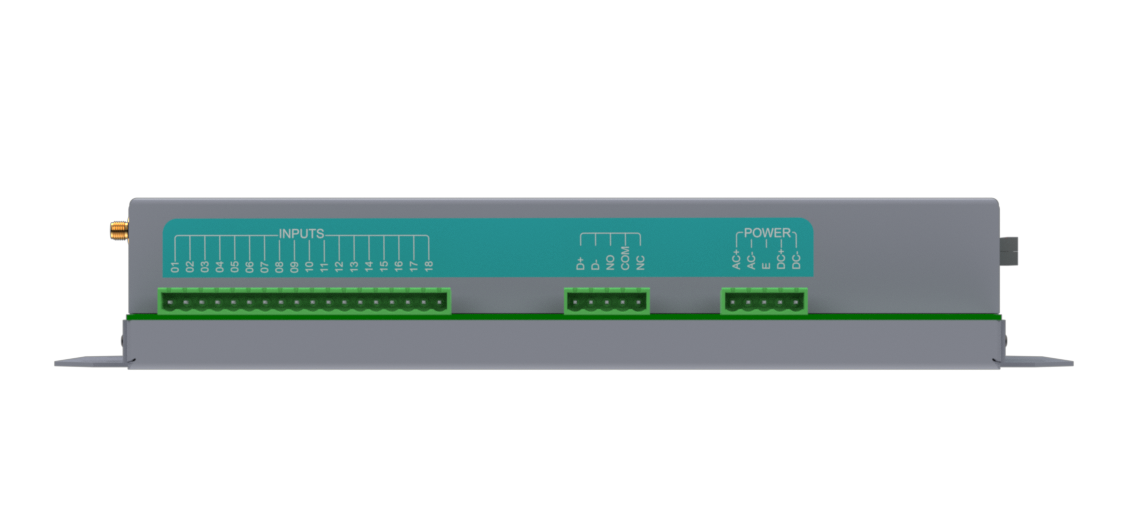

  • 16x Digital input

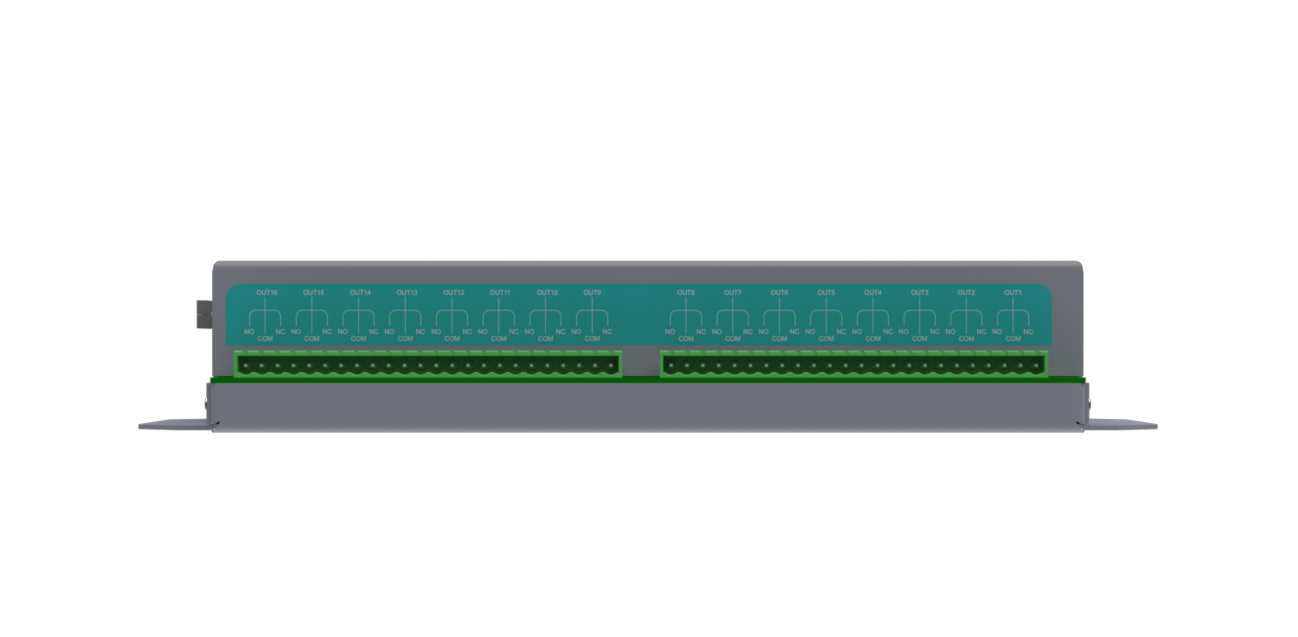

  • 16x Output relays
  • 1x 10/100 Ethernet port

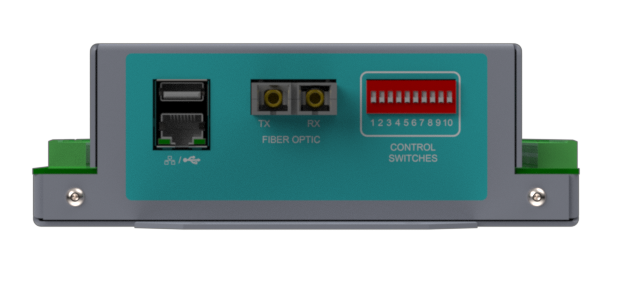

  • 1x Customized fiber optic port
  • 1x Serial communication port RS485
  • Reducing installation cost while increasing workers safety
  • High data transmission reliability
  • Simple to set up
  • High operating speed
  • Built to meet stringent industrial standards
  • Wide range of power supply options
  • Direct Panel Mounting
  • EMI, RFI, shock and vibration protected
  • RoHS, CE and FCC certifications
  • System operating temperature -40 to 85°C (–40 to +185°F)
1 in stock
Base Price:1263.01 $

Contact Sales

DESCRIPTION

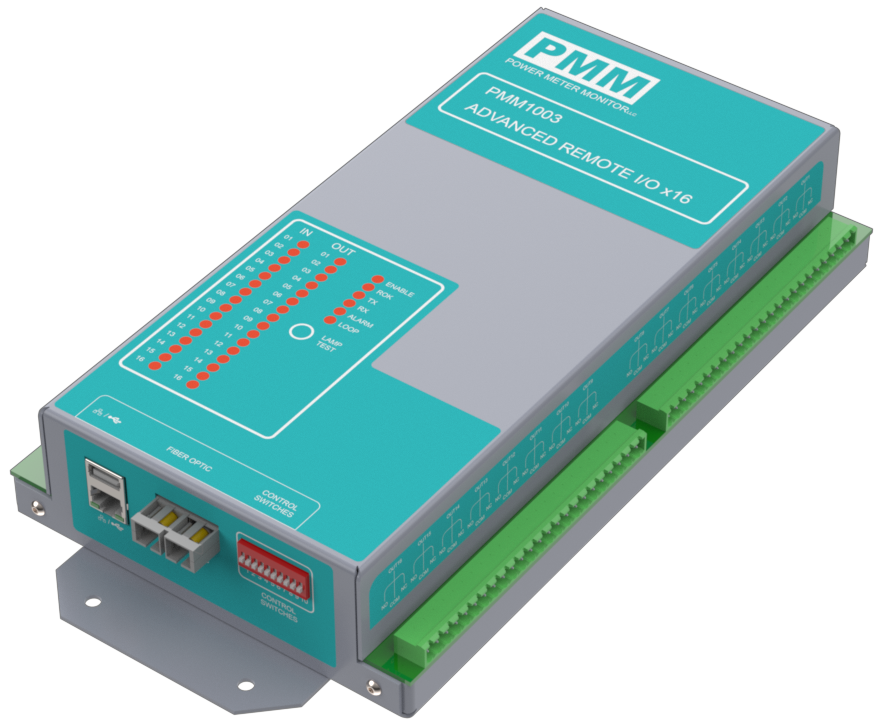

PMM1003 is a reliable, secure, simple to set up remote I/O module that communicates with remote devices using Mirrored Bits® through a fiber optic port. Each contact input controls one of the eight MIRRORED BITS transmit bits, while each of the eight received MIRRORED BITS controls an output contact.

PMM1003 ensures data transmission between remote devices for extended distances through the fiber optic port with high security and lower project costs as fiber optic replaces the large wires that are conventionally used.

PMM1003 is covered within a durable metal chassis that is designed and tested on field to withstand vibration, electrical surges, fast transients, and extreme temperatures as well as harsh environmental conditions.

APPLICATION

PMM1003 is especially designed to meet industrial standards, increasing the reliability and security for remote data transmission.

There are many applications can be performed by PMM1003 with high efficiency, including:

  • Enhancing communication between existing relays
  • Enhancing and isolating remote communication through fiber optic links
  • Ensuring that relays are functioning properly by performing self-testing
  • Transmitting data directly to existing cogeneration interconnections
  • Enabling tele protection through digital multiplexers which allows monitoring transmission lines, isolating faults and preventing permanent damage with minimum possible cost
  • Increasing I/O relay capability through MIRRORED BIT communications protocol
