PMM - Power Meter Monitor

MM2KM

PMM Fiber Optic Modules

KEY FEATURES

  • Up to 1.25Gb/s dual data links
  • Hot-pluggable SFP footprint
  • 1310nm FP laser transmitter
  • Duplex LC connector
  • Up to 2km on 9/125µm SMF
  • Single +3.3V power supply
  • Compliant with SFF+MSA and SFF8472
  • Metal enclosure for lower EMI
  • Operating temperature range: 0°C to 70°C (32°F to 158°F)

Contact Sales

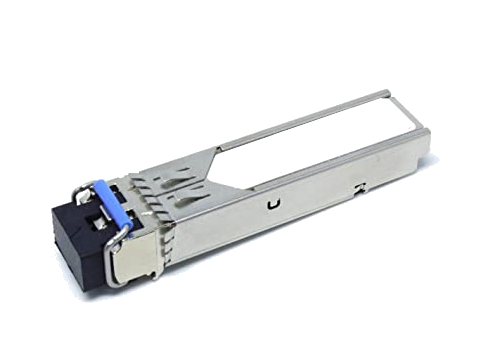

PMM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).

PMM1230 provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 2km on a single fiber core. Moreover, it simultaneously complies with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fiber Channel as defined in FC-PI-2 Rev. 10.0. PMM1230 is RoHS compliant and lead-free.

Applications

  • 1.25Gb/s 1000Base-LX Ethernet
  • 1.06 Gb/s Fiber Channel
